Silent Diesel Generator Set
>

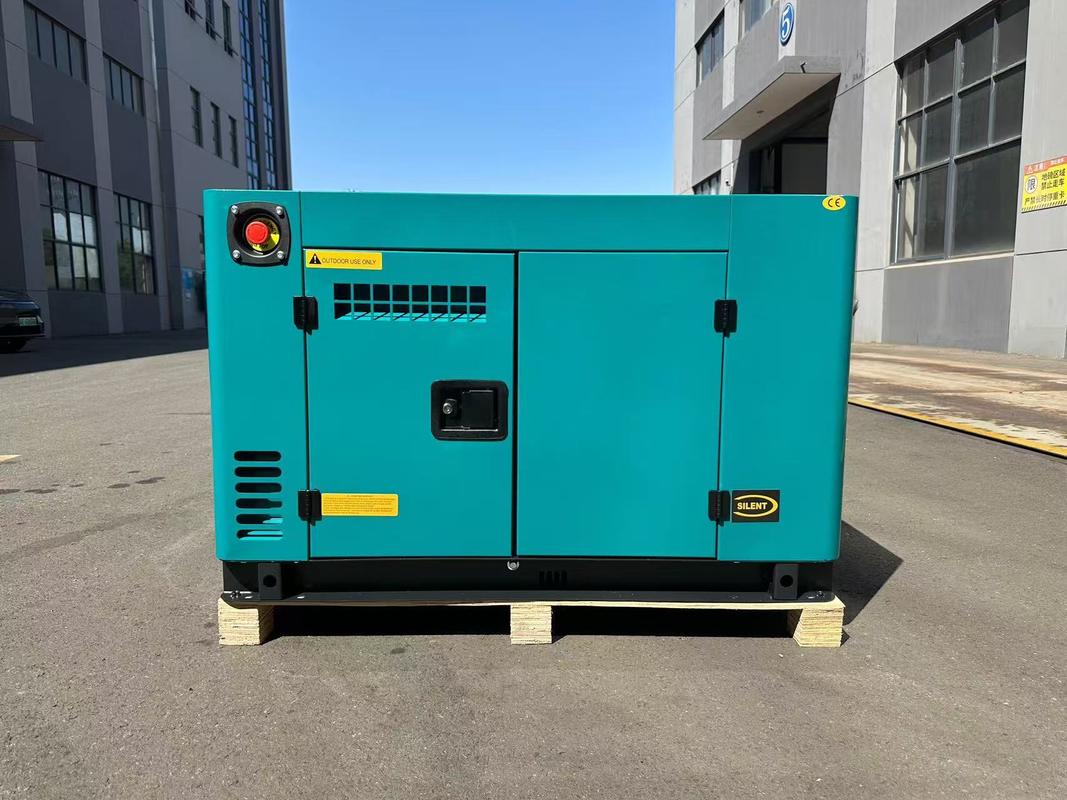

220V 380V Quiet Diesel Generator 15KVA 12KW Quiet Generator Customizable
|
220V 380V Quiet Diesel Generator 15KVA 12KW Quiet Generator Customizable
| Place of Origin | China |
| Brand Name | JIWEI |
| Certification | ce |
| Model Number | JW-YMT |
Product Details
Rated Voltage:
110V/220V/230V/380V/400V/440V,120 To 440V
Frequency:
50/60HZ
Speed:
3600rpm,3000/3600RPM,1500/1800
Rated Current:
5A-30A
Rated Power:
12kw 15kva
Output Type:
AC Single Phase,DC,AC 3 Phase,Other
Color:
Customizable
Engine Type:
Two-Cylinder Four-Stroke，Air-cooled Diesel Engine,ECU
Starting System:
Manual Start, Remote Start, Electric Start
Function:
Provide Electric Power
Fuel Tank Capacity:
10-25L，According To Customers' Requirement
Alternator Type:
Brush Alternator With AVR Or Brushless With AVR,Three Phase Alternator
Product:
12KW 15KVA Silent Diesel Generator All-copper 220V/380V High Efficiency
Highlight:
220V 380V Quiet Diesel Generator
,Quiet Diesel Generator 15KVA
,15KVA 12KW Quiet Generator
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Payment Terms
T/T
Product Description
12KW 15KVA Silent Diesel Generator All-copper 220V/380V High Efficiency
Silent diesel generators are specifically designed to minimize noise output, making them ideal for environments that require quiet operation. These generators combine high efficiency with durable construction for reliable power in various applications.
Key Features
- Low Noise Design: Uses soundproof materials and specially designed silencers to significantly reduce operational noise.
- High Efficiency: Provides stable power output with excellent fuel efficiency for extended operation.
- Durability: Robust diesel engine construction suitable for long-running and heavy-load conditions.
- Portability: Mobile design allows for easy relocation and use in various settings.
- Environmental Protection: Complies with modern environmental standards, reducing emissions and ensuring eco-friendliness.
Applications
- Backup Power Supply: Emergency power for hospitals, data centers, and critical operations during outages.
- Outdoor Activities: Reliable power for events such as weddings, concerts, and outdoor gatherings.
- Construction Sites: Electricity for tools and facilities at sites without grid access.
- Remote Areas: Power delivery for research stations, mining operations, and isolated locations.
Technical Specifications
| MODEL | YMT15000STA-3) | YMT18000STA-3) |
|---|---|---|
| Frequency (HZ) | 50 | 60 | 50 | 60 |
| Voltage (V) | 220,230,240,110/220,127/220,115/230,120/240,220/380,230/400,240/415 | 220,230,240,110/220,127/220,115/230,120/240,220/380,230/400,240/415 |
| Rated Power (KVA) | 11.5(13.7) | 12(15) | 15(18.8) | 16(20) |
| Max.Power (KVA) | 12.5(15) | 13(16.2) | 16(20) | 17(21.2) |
| Phase Number | 1-phase/3-phase | 1-phase/3-phase |
| Excitation | self-exciting,brush | self-exciting,brush |
| Power Factor | 1.0(0.8) | 1.0(0.8) |
| Insulation Grade | F | F |
| Fuel Capacity (L) | 25 | 25 |
| Noise Level(@7m) dB(A) | 75 | 75 |
| Engine Model | 2V92 | 2V95 |
| Engine Type | 2-cylinder,4-stroke,air-cooled,VType | 2-cylinder,4-stroke,air-cooled,VType |
| Starting System | Electric start | Electric start |
| Broke*Stroke (mm) | 92*75 | 95*88 |
| Displacement (L) | 0.997 | 1.247 |
| Compression Ratio | 20.0:1 | 20.0:1 |
| Rated Rotation Speed (rpm) | 3000 | 3600 | 3000 | 3600 |
| Rated Power (KW) | 14 | 15.5 | 19 | 21 |
| Lube Oil Capacity (L) | 3.8 | 4 |
| Fuel Type | 0#(summer),-10#(winter)diesel | 0#(summer),-10#(winter)diesel |
| Lube Oil | SAE10W30(CF grade or above) | SAE10W30(CF grade or above) |
| Optional | ATS, Remote control, Digital smart panel | ATS, Remote control, Digital smart panel |
| Overall Dimension (mm) | 1200*720*880 | 1250*720*880 |
| Net Weight (kg) | 260 | 270 |
Frequently Asked Questions
Q: What is your MOQ of this item?
A: 1 Set.
Q: What is the lead time?
A: 7 working days after receiving the 30% T/T deposit.
Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q: Where is your Loading Port?
A: Shanghai or others.
Q: What are your payment terms?
A: 30% TT as deposit, 70% TT before Shipment.
Q: What is your company's available production capacity?
A: 100 Sets per month.
Q: What's the warranty time of diesel generators?
A: 12 months or 1000 working hours, whichever comes first.
