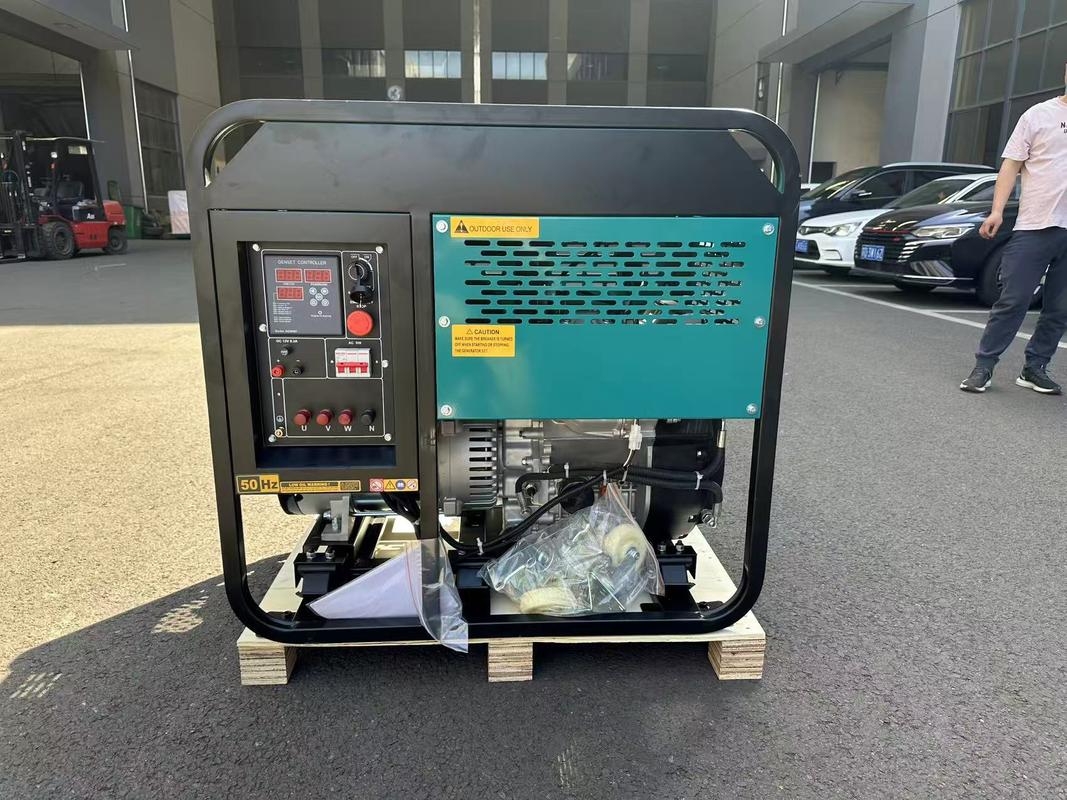

12KW 15KVA Diesel Generator All Copper 220V 380V Single / Three Phase
|
12KW 15KVA Diesel Generator All Copper 220V 380V Single / Three Phase
| Place of Origin | China |
| Brand Name | JIWEI |
| Certification | ce |
| Model Number | JW-YMT |
Product Details
Rated Voltage:
110V/220V/230V/380V/400V/440V,120 To 440V
Frequency:
50/60HZ
Speed:
3600rpm,3000/3600RPM,1500/1800
Rated Current:
5A-30A
Rated Power:
12kw 15kva
Output Type:
AC Single Phase,DC,AC 3 Phase,Other
Color:
Customizable
Engine Type:
Two-Cylinder Four-Stroke，Air-cooled Diesel Engine,ECU
Starting System:
Manual Start, Remote Start, Electric Start
Function:
Provide Electric Power
Fuel Tank Capacity:
10-25L，According To Customers' Requirement
Alternator Type:
Brush Alternator With AVR Or Brushless With AVR,Three Phase Alternator
Product:
12KW 15KVA Diesel Generator All-copper 220V/380V High Efficiency Single/Three Phase
Highlight:
12KW 15KVA Diesel Generator
,15KVA Diesel Generator All Copper
,220V 380V Quiet Diesel Generator
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Payment Terms
T/T
Product Description
12KW 15KVA Diesel Generator All-copper 220V/380V High Efficiency Single/Three Phase
Overview
Silent diesel generators are specifically designed to minimize noise output, making them ideal for environments that require quiet operation. These generators combine high efficiency with durable construction for reliable power solutions.
Key Features
- Low Noise Design: Uses soundproof materials and specially designed silencers to significantly reduce operational noise.
- High Efficiency: Provides stable power output over extended periods with excellent fuel economy.
- Durability: Robust diesel engine structure suitable for long-running and heavy-load conditions.
- Portability: Designed for easy relocation and use in various settings.
- Environmental Protection: Complies with modern environmental standards, reducing emissions.
Applications
- Backup Power Supply: Emergency power for hospitals, data centers, and critical operations.
- Outdoor Activities: Reliable power for events, weddings, and concerts.
- Construction Sites: Electricity for tools and facilities at remote job sites.
- Remote Areas: Power for research stations, mining operations, and isolated locations.
Specifications
| MODEL | YMT15000STA-3) | YMT18000STA-3) |
|---|---|---|
| Frequency | 50 | 60 HZ | 50 | 60 HZ |
| Voltage | 220,230,240,110/220,127/220,115/230,120/240,220/380,230/400,240/415 V | 220,230,240,110/220,127/220,115/230,120/240,220/380,230/400,240/415 V |
| Rated Power | 11.5(13.7) | 12(15) KVA | 15(18.8) | 16(20) KVA |
| Max.Power | 12.5(15) | 13(16.2) KVA | 16(20) | 17(21.2) KVA |
| Phase Number | 1-phase/3-phase | |
| Excitation | self-exciting,brush | |
| Power Factor | 1.0(0.8) | |
| Insulation Grade | F | |
| Fuel Capacity | 25 L | |
| Noise Level(@7m) | 75 dB(A) | |
| Engine Model | 2V92 | 2V95 |
| Engine Type | 2-cylinder,4-stroke,air-cooled,VType | |
| Starting System | Electric start | |
| Broke*Stroke | 92*75 mm | 95*88 mm |
| Displacement | 0.997 L | 1.247 L |
| Compression Ratio | 20.0:1 | |
| Rated Rotation Speed | 3000 | 3600 rpm | 3000 | 3600 rpm |
| Rated Power | 14 | 15.5 KW | 19 | 21 KW |
| Lube Oil Capacity | 3.8 L | 4 L |
| Fuel Type | 0#(summer),-10#(winter)diesel | |
| Lube Oil | SAE10W30(CF grade or above) | |
| Optional | ATS, Remote control, Digital smart panel | |
| Overall Dimension | 1200*720*880 mm | 1250*720*880 mm |
| Net Weight | 260 kg | 270 kg |
Product Images
Frequently Asked Questions
Q: What is your MOQ of this item?
A: 1 Set.
Q: What is the lead time?
A: 7 working days after receiving the 30% T/T deposit.
Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q: Where is your Loading Port?
A: Shanghai or others.
Q: What are your payment terms?
A: 30% TT as deposit, 70% TT before Shipment.
Q: What is your company's available production capacity?
A: 100 Sets per month.
Q: What's the warranty time of diesel generators?
A: 12 months or 1000 working hours, whichever comes first.
