Silent Diesel Generator Set
>
10KVA 12KVA 15KVA 18KVA 20KVA Silent Diesel Generator Set 3000/3600RPM
|
10KVA 12KVA 15KVA 18KVA 20KVA Silent Diesel Generator Set 3000/3600RPM
| Place of Origin | China |
| Brand Name | JIWEI |
| Certification | ce |
| Model Number | JW-YMT |
Product Details
Rated Voltage:
110V/220V/230V/380V/400V/440V,120 To 440V
Frequency:
50/60HZ
Speed:
3600rpm,3000/3600RPM,1500/1800
Rated Current:
5A-30A
Rated Power:
10kva 12kva 15kva 18kva 20kva
Output Type:
AC Single Phase,DC,AC 3 Phase,Other
Color:
Customizable
Engine Type:
Two-Cylinder Four-Stroke，Air-cooled Diesel Engine,ECU
Starting System:
Manual Start, Remote Start, Electric Start
Function:
Provide Electric Power
Fuel Tank Capacity:
10-25L，According To Customers' Requirement
Alternator Type:
Brush Alternator With AVR Or Brushless With AVR,Three Phase Alternator
Product:
10kva 12kva 15kva 18kva 20kva Silent Diesel Generator
Highlight:
20KVA Silent Diesel Generator Set
,18KVA Silent Diesel Generator Set
,10KVA 12KVA silent diesel generator
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Payment Terms
T/T
Product Description

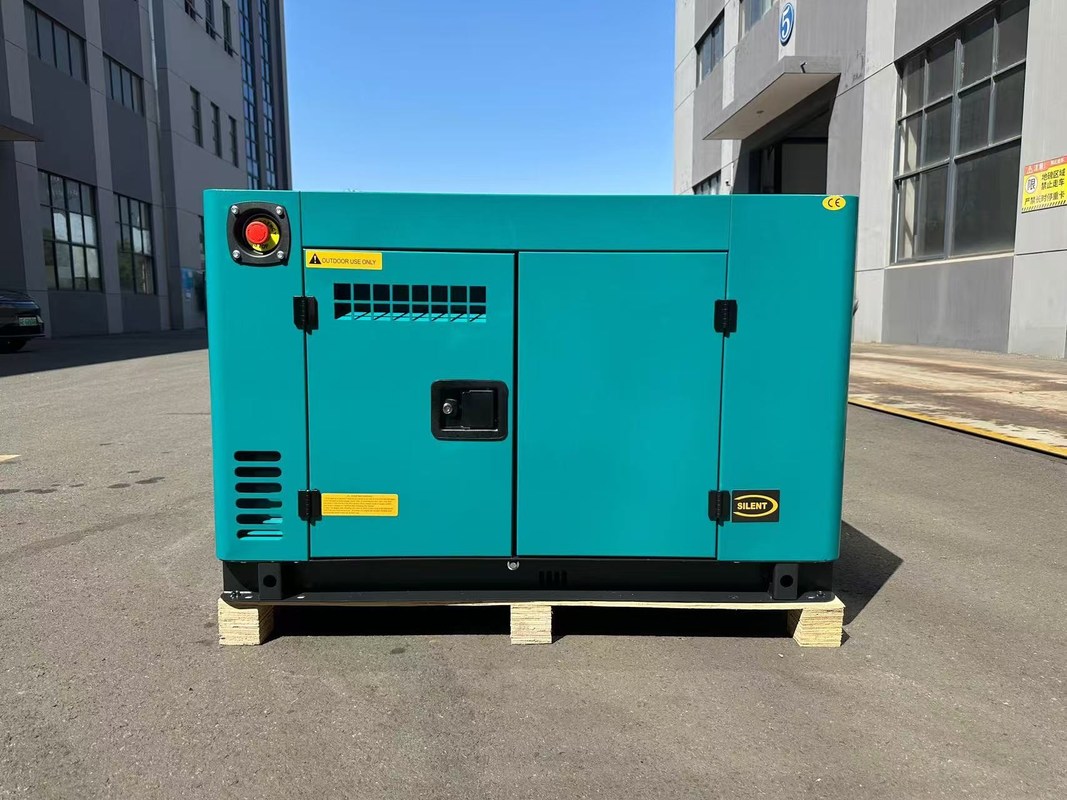

10kVA-20kVA Silent Diesel Generator Set (Air Cooled, Customizable)
Overview
Our silent diesel generators are engineered for minimal noise output, making them ideal for environments requiring quiet operation. These units combine high performance with environmental consciousness for reliable power solutions.
Key Features
- Low Noise Design: Incorporates soundproof materials and specialized silencers for significantly reduced operational noise
- High Efficiency: Delivers stable power output with excellent fuel economy for extended operation
- Durability: Robust diesel engine construction withstands continuous heavy-load conditions
- Portability: Mobile design allows for easy relocation to various work sites
- Eco-Friendly: Complies with modern environmental standards for reduced emissions
Applications
- Emergency Backup: Critical power supply for hospitals, data centers, and commercial facilities
- Outdoor Events: Reliable power for weddings, concerts, and temporary installations
- Construction Sites: Powers tools and facilities in locations without grid access
- Remote Operations: Essential power source for mining, research stations, and isolated locations
Technical Specifications
| Parameter | Unit | 2.8kW | 4.5kW | 5kW | 6kW | 8kW | 9kW |
|---|---|---|---|---|---|---|---|
| Frequency | Hz | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated Power | kW | 2.8 | 4.5 | 5 | 6 | 8 | 9 |
| Maximum Power | kW | 3 | 5.5 | 6 | 7 | 9 | 10 |
| Rated Voltage | V | 220 | 220 | 220 | 220 | 220 | 220 |
| Power Factor | Cos φ | 1 | 1 | 1 | 1 | 1 | 1 |
| Engine Type | Single cylinder, air-cooled, four-stroke | ||||||
| Starting Mode | Electrical starting | ||||||
| Fuel Type | Diesel (summer -10, winter -35) | ||||||
| Lubricating Oil | 15W-40 | ||||||
| Dimensions (L×W×H) | mm | 890×520×640 | 890×520×640 | 890×520×640 | 890×520×640 | 1100×650×735 | 1100×650×735 |
| Net Weight | kg | 130 | 140 | 150 | 160 | 190 | 195 |
| Noise Level | dB(A) | 70 | 70 | 70 | 70 | 70 | 70 |
| Parameter | Unit | 10kW | 11kW | 15kW |
|---|---|---|---|---|
| Frequency | Hz | 50/60 | 50/60 | 50/60 |
| Rated Power | kW | 10 | 11 | 15 |
| Maximum Power | kW | 11 | 12 | 16 |
| Engine Type | Twin-cylinder, air-cooled, four-stroke | |||
| Noise Level | dB(A) | 85 | 85 | 90 |
| Dimensions (L×W×H) | mm | 1100×650×735 | 1100×650×735 | 935×675×975 |
| Net Weight | kg | 215 | 260 | 269 |
Frequently Asked Questions
Q: What is your MOQ of this item?
A: 1 Set
Q: What is the lead time?
A: 7 working days after receiving the 30% T/T deposit.
Q: Can you produce with our brand name?
A: Yes, we provide OEM services with proper brand authorization.
Q: What is your shipping port?
A: Shanghai or other Chinese ports.
Q: What are your payment terms?
A: 30% T/T deposit, 70% balance before shipment.
Q: What is your production capacity?
A: 100 sets per month.
Q: What is the warranty period?
A: 12 months or 1000 working hours, whichever comes first.
