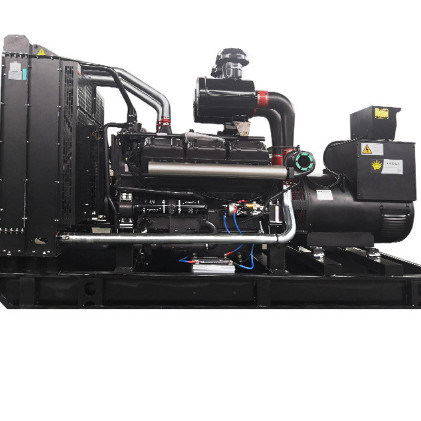

Silent Open SDEC Generator Set 80KW 100KVA 380V SDEC Genset
|
Silent Open SDEC Generator Set 80KW 100KVA 380V SDEC Genset
| Place of Origin | Sichuan, China |
| Brand Name | JIWEI |
| Certification | CE |
| Model Number | SC4H140D2 |
Product Details
Rated Current:
144A
Speed:
1500RPM, 1800RPM
Frequency:
50/60hz
Starting System:
Auto Start, Remote Start, 24V DC Electric Start
Type:
Container Type, Open Frame, Mobile Type
Cooling System Type:
Water Cooling System
Warranty:
Other
Rated Voltage:
400/230V,220V,220/380V,220V / 380V,380/220V
Output Type:
AC Three Phase,AC Single Phase
Rated Power:
80kw 100kva
Alternator:
Marathon,Stamford Or Equal,China Stamford,STAMFORD/COPY STAMFORD,XINNUO/Leroysomer/Stanford/Marathon/Faraday Are Optional
Engine:
SDEC SC4H140D2
Control Panel:
Deepsea / ComAp / Harsen / Smartgen 6110,Deepsea Or Equal
Fuel:
Diesel
Product Name:
80kw 100kva SDEC Diesel Generator Set
Color:
Customizable
Highlight:
Silent Open SDEC Generator Set
,SDEC Generator Set 80KW 100KVA
,100KVA 380V SDEC Genset
Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiable
Delivery Time
30 work days
Payment Terms
T/T
Product Description
Silent Open SDEC Generator Set 80kw 100kva 380V Industrial Diesel Generator Set
SDEC Genset 80kw 100kva Silent Open Easy Maintenance Diesel Generator
Overview
Application Field
- Industrial field: Widely used in industrial and mining enterprises to provide stable power for production equipment, such as mining, factory production and other scenarios.
- Commercial field: Commercial buildings such as shopping malls, hotels, office buildings, etc., in the case of power failure, diesel generators can be used as backup power to ensure basic operations.
- Public utilities: Hospitals, schools, communication base stations and other public facilities need reliable power supply, and diesel generators can provide power support in emergency situations.
Key Advantages
- Advanced technology: Uses electronic control high pressure common rail fuel injection system and other advanced technology, effectively reducing fuel consumption and harmful gas emissions while improving combustion efficiency.
- Easy maintenance: Optimized design of lubrication, cooling system and overall brushless alternator, reducing the number of external pipes and parts, lowering maintenance costs and difficulties.
- High degree of intelligence: Equipped with automatic controller that monitors the operating status in real time, with protection functions including high water temperature, low oil pressure, over current, over load, and supports remote monitoring and fault diagnosis.
Technical Specifications
| SDEC GEN-SETS DATASHEET RATED 80kW | ||
|---|---|---|
| Gen-set specifications | ||
| Model | JW-D80S3K-1 | |
| Standby Rating kVA/kWe | 110/88 | |
| Prime Rating kVA/kWe | 100/80 | |
| Voltage V | 400/230 | |
| Frequency Hz | 50 | |
| Power Factor | 0.8(lagging) | |
| No.of Phases | 3 | |
| Fuel consumption@25%/50%/75%(L/h) | 6.5/11.8/17.1 | |
| Fuel consumption@100%/110%(L/h) | 23.0/25.9 | |
| Sound@1m(dB * (A)) | Open≤96; Silence ≤90 | |
| Emission level | Non-Road China II | |
| Ambient temp(℃) | 5～45 | |
| Gen-set regulation class | ISO 8528-5 G2 | |
| Steady-state voltage deviation | ≤±2.5% | |
| Transient voltage deviation (100% sudden power decrease/increase) | ≤+25%;≤-20% | |
| Steady-state frequency band | ≤1.5% | |
Standard Features
Available Options
Frequently Asked Questions
Q: What is your MOQ of this item?
A: 1 Sets.
Q: What is the lead time?
A: 7 working days after received the 30% T/T deposit.
Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q: Where is your Loading Port?
A: Shanghai or others.
Q: What are your payment terms?
A: 30% TT as deposit, 70% TT before Shipment.
Q: What is your company's available production capacity?
A: 100 Sets per month.
Q: What's the warranty time of diesel generators?
A: 12 months or 1000 working hours, whichever comes first.
