Silent Diesel Generator Set
>

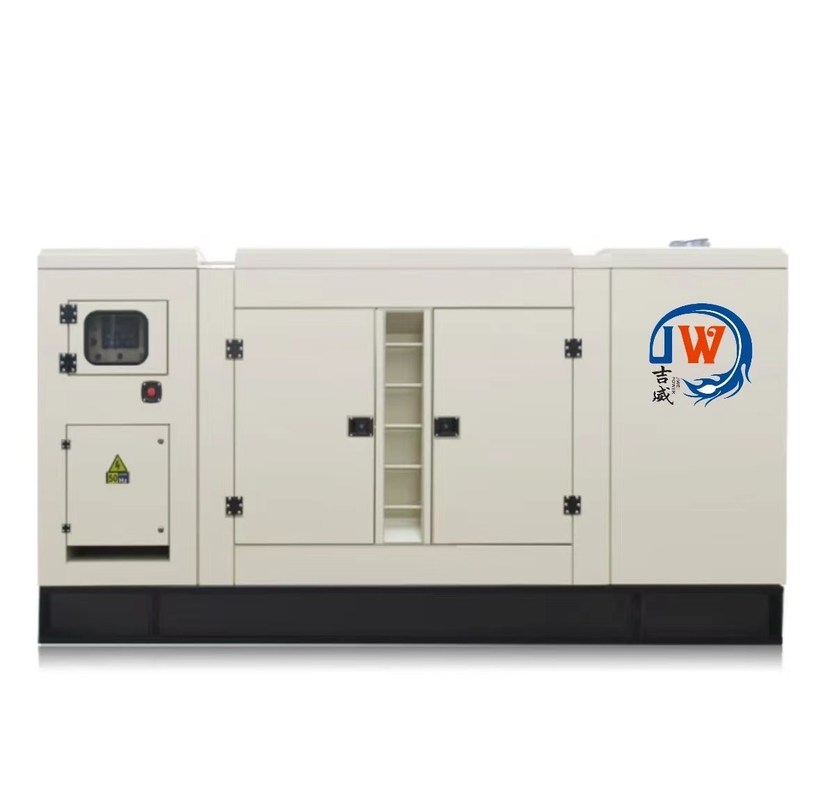

60KW 75kva Quiet Diesel Generator 1500RPM Super Silent Diesel Generator
|
60KW 75kva Quiet Diesel Generator 1500RPM Super Silent Diesel Generator
| Place of Origin | China |
| Brand Name | JIWEI |
| Certification | CE |
| Model Number | WP4.1 |
Product Details
Rated Voltage:
400V , 230V, 380V, 480V
Rated Current:
90A-144A
Speed:
1500RPM, 1800RPM
Frequency:
50/60hz
Starting System:
24V DC Electric Start
Type:
Container Type, Open Frame, Mobile Type
Cooling System Type:
Water Cooling System
Warranty:
Other
Rated Power:
60KW 75kva
Engine:
WP4.1
Product Name:
Silent 60kw Weichai Diesel Generator
Color:
Customizable
Highlight:
60KW 75kva Quiet Diesel Generator
,Quiet Diesel Generator 1500RPM
,1500RPM Super Silent Diesel Generator
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Payment Terms
T/T
Product Description
1500RPM 60KW 75kva Generator Silent Box Weichai Engine Low Noise Quiet Portable Generator
Beautiful Appearance And Low Noise 60KW 75kva Weichai Engine Diesel Generator Set
Key Features
- Engine quality assurance: Produced by Weichai (Shandong) Co., LTD., featuring advanced combustion system and fuel injection technology for low fuel consumption and low noise operation.
- High efficiency and energy saving: Excellent energy conversion efficiency with superior performance under high load conditions, reducing fuel consumption compared to traditional generator sets.
- Stability: Advanced control system and voltage regulation technology ensure constant output voltage with minimal fluctuation for stable power supply to all electrical equipment.
- Convenient operation and maintenance: Intelligent design with remote control start/stop system and fault self-diagnosis function for easy operation and maintenance.
- Multiple protection mechanisms: Includes overvoltage, undervoltage, overload, and short circuit protection for enhanced equipment and personnel safety.
Technical Specifications
| Land Based Genset-JW-WP66 | |
|---|---|
| Gen-set specifications | |
| Model | JW-WP66 |
| Standby Rating kVA/kWe | 68.5/55 |
| Prime Rating kVA/kWe | 62.5/50 |
| Voltage V | 400/230 |
| Frequency Hz | 50 |
| Power Factor | 0.8(lagging) |
| No.of Phases | 3 |
| Fuel consumption@25%/50%/75%(Lh) | 4.34/7.12/9.46 |
| Fuel consumption@100%/110%(Lh) | 13/14.13 |
| Sound@1m(dB * (A)) | Open≤105 dB(A);Silence≤85 dB(A) |
| Ambient temp(℃) | -10~45 |
| Gen-set regulation class | ISO8528-5 G2 |
| Steady-state voltage deviation | ≤±2.5%;≤±5% |
| Transient voltage deviation (100% sudden power decrease/increase) | +25%;-20% |
| Steady-state frequency band | ≤1.5% |
| Transient frequency deviation from rated frequency (100% sudden power decrease/increase) | +12%;-10% |
Standard Features
- Electronic governor
- DC24 Electric starter
- JW-WHC6120NC
- Closed water-cooled
- IP23
- H type insulation
- Air filter
- Muffler
- Circuit Breaker
- Starting batteries with connective wires
- Radiator
- Oil Drain Valve
- Forklift Groove
- Shock Absorber
- Color: Weichai blue(B,F)/beige canopy and black chassis(L)
- Packaging: packing case(B,F)
Options
- Voltage 380V/415V
- Voltage 440V/480V
- External fuel tank (1000L/1500L)
- Single Voltage 220V/230V
- Automatic Transfer Switch
- Alternator heater
- Engine Heater(water)
- PMG/AREP
Typical Enclosed Genset Dimensions
| Genset Model | Prime Rating (kVA) | Length A(mm) | Width B(mm) | Height C(mm) | Wet Weight* (kg) | Standard Fuel tank Capacity (L) |
|---|---|---|---|---|---|---|
| JW-WP66B1 | 50 | 1930 | 860 | 1218 | 925 | / |
| JW-WP66F1 | 50 | 1930 | 860 | 1218 | 1030 | 105 |
| JW-WP66L1 | 50 | 2880 | 1050 | 1600 | 1420 | 180 |
*Include coolant and oil
Product Images
Frequently Asked Questions
Q: What is your MOQ of this item?
A: 1 Sets.
Q: What is the lead time?
A: 7 working days after received the 30%T/T deposit.
Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q: Where is your Loading Port?
A: Shanghai or others.
Q: What are your payment terms?
A: 30% TT as deposit, 70% TT before Shipment.
Q: What is your company's available production capacity?
A: 100 Sets per month.
Q: What's the warranty time of diesel generators?
A: 12 months or 1000 working hours, whichever comes first.
We have cooperation with worldwide famous brands. For more specification, please contact us.
