500kw 625kva Weichai Generator 600kw 750kva Diesel Generator Set
|
500kw 625kva Weichai Generator 600kw 750kva Diesel Generator Set
| Place of Origin | China |
| Brand Name | JIWEI |
| Certification | CE |
| Model Number | WP13D |
Product Details
Rated Voltage:
400V , 230V
Rated Current:
400A-480A
Speed:
1500RPM, 1800RPM
Frequency:
50/60hz
Starting System:
24V DC Electric Start, 12V DC Electric Start
Type:
Container Type, Open Frame, Mobile Type
Cooling System Type:
Water Cooling System
Warranty:
Other
Rated Power:
500 Kw / 625 Kva/600 Kw / 750 Kva
Engine:
WP13D
Product Name:
500 Kw / 625 Kva/600 Kw / 750 Kva Weichai Diesel Generator Set
Color:
Customizable
Highlight:
500kw 625kva Weichai Generator
,600kw 750kva Diesel Generator Set
,Weichai Generator 600kw 750kva
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiabce
Payment Terms
T/T
Product Description
Cost-Effective 500kw 625kva Weichai Engine 600kw 750kva Diesel Generator Set
Product Overview
- Excellent performance: Stable and reliable operation suitable for communication, oil, railways, highways, and construction applications. Can serve as uninterruptible, backup, or primary power supply.
- High efficiency and energy saving: Features efficient fuel injection technology and advanced turbocharging mechanism for high combustion efficiency and low fuel consumption.
- Environmental protection and low noise: Complies with international environmental standards with low emissions and noise mitigation technology.
- Advanced design: Integrated crankshaft box structure and modular design technology for lightweight, compact size, and high efficiency.
- Easy maintenance: Compact structure with simple operation, flexible maintenance, and automated adjustment of output voltage and frequency based on load changes.
Gen-set Specifications
| Model | JW-WP633 |
|---|---|
| Standby Rating kVA/kWe | 687.5/550 |
| Prime Rating kVA/kWe | 625/500 |
| Voltage V | 400/230 |
| Frequency Hz | 50 |
| Power Factor | 0.8(lagging) |
| No. of Phases | 3 |
| Fuel consumption @25%/50%/75%(Lh) | 37.5/66.2/97.1 |
| Fuel consumption @100%/110%(Lh) | 128.4/143.9 |
| Sound @1m(dB * (A)) | Open≤103; Silence ≤95 |
| Ambient temp(℃) | -10~45 |
| Gen-set regulation class | ISO 8528-5G2 |
Typical Enclosed Genset Dimensions
| Genset Model | Rated Power (kW) | Length (mm) | Width (mm) | Height (mm) | Wet Weight* (kg) | Standard Fuel tank Capacity (L) |
|---|---|---|---|---|---|---|
| JW-WP633B73 | 500 | 3850 | 1680 | 2100 | 5200 | / |
| JW-WP63F73 | 500 | 3850 | 1680 | 2100 | 5600 | 700 |
| JW-WP633L73 | 500 | 5300 | 2100 | 2780 | 7200 | 650 |
*Include coolant and oil.

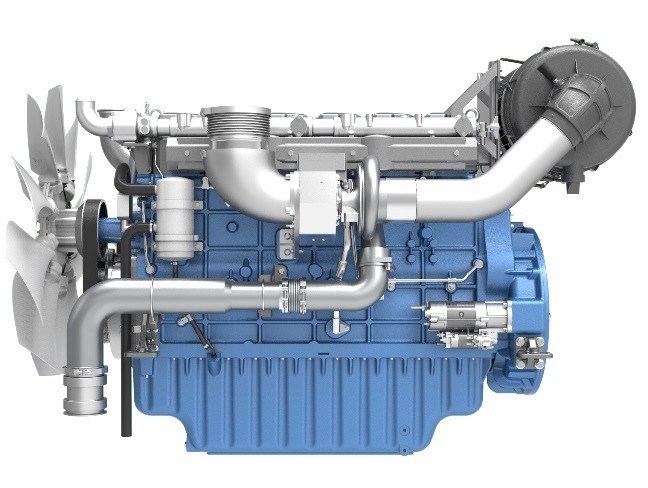

Product Images
Frequently Asked Questions
Q: What is your MOQ of this item?
A: 1 Sets.
Q: What is the lead time?
A: 7 working days after receiving the 30% T/T deposit.
Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q: Where is your Loading Port?
A: Shanghai or others.
Q: What are your payment terms?
A: 30% TT as deposit, 70% TT before Shipment.
Q: What is your company's available production capacity?
A: 100 Sets per month.
Q: What's the warranty time of diesel generators?
A: 12 months or 1000 working hours, whichever comes first.
Why Choose Our Generator Sets
Environmental Protection & Fuel Saving: Optimized performance with flexible control, reduced NOx emissions, high precision control, low vibration, low noise, and low maintenance cost.
Delivery Guarantee: Fast delivery (1-5 days after deposit) with 20 years of industry experience and strong supply chain capabilities.
Quality Assurance: Comprehensive testing including 50%, 75%, 100%, and 110% load tests with all control and safety functions verified.
Service Guarantee: Free technical support, 2-year/2000-hour warranty, 30-minute response time, global warranty coverage, and spare parts availability.
Customized Services: Custom products and branding options available.
Confidentiality: Quality assurance and confidentiality agreements available for stable cooperation.
For detailed parameters and specifications, please contact our sales team. We collaborate with worldwide famous brands to provide customized solutions.
