Silent Diesel Generator Set
>

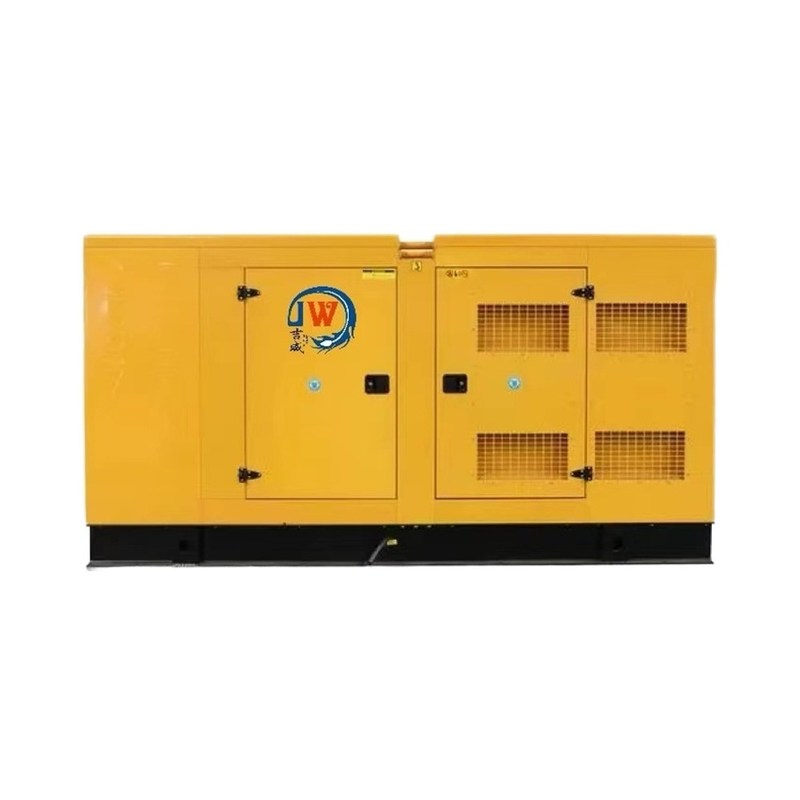

125kva 2200kva Diesel Generator Super Silent Weichai Engine 100kva Diesel Generator
|
125kva 2200kva Diesel Generator Super Silent Weichai Engine 100kva Diesel Generator
| Place of Origin | China |
| Brand Name | JIWEI |
| Certification | CE |
| Model Number | WP4.1 |
Product Details
Rated Voltage:
400V , 230V
Rated Current:
90A-144A
Speed:
1500RPM, 1800RPM
Frequency:
50/60hz
Starting System:
24V DC Electric Start
Type:
Container Type, Open Frame, Mobile Type
Cooling System Type:
Water Cooling System
Warranty:
Other
Rated Power:
100kva 125kva 200kva
Engine:
WP4.1
Product Name:
Silent 100kva 125kva 200kva Weichai Diesel Generator
Color:
Customizable
Highlight:
2200kva Diesel Generator Super Silent
,125kva 2200kva Diesel Generator
,Weichai Engine 100kva Diesel Generator
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Payment Terms
T/T
Product Description
125kVA/200kVA Quiet Diesel Generator with Weichai Engine
Cost-effective High/Low Noise Diesel Generator Set
Application Scenarios
- 100kVA: Ideal for small businesses, retail shops, and small data centers as backup power for lighting and office equipment
- 125kVA: Suitable for medium-sized shops, small factories, and construction sites to power production equipment and machinery
- 200kVA: Designed for large commercial spaces, medium factories, hospitals, and schools to support critical systems and medical equipment
Technical Specifications
| Land Based Genset - JW-WP66 | |
|---|---|
| Model | JW-WP66 |
| Standby Rating (kVA/kWe) | 68.5/55 |
| Prime Rating (kVA/kWe) | 62.5/50 |
| Voltage (V) | 400/230 |
| Frequency (Hz) | 50 |
| Power Factor | 0.8 (lagging) |
| Number of Phases | 3 |
| Fuel Consumption @25%/50%/75% (L/h) | 4.34/7.12/9.46 |
| Fuel Consumption @100%/110% (L/h) | 13/14.13 |
| Sound Level @1m (dB(A)) | Open ≤105 dB(A); Silence ≤85 dB(A) |
| Operating Temperature Range (℃) | -10 to 45 |
Standard Features
- Electronic governor
- DC24 Electric starter
- Closed water-cooled system
- IP23 protection
- H type insulation
- Air filter and muffler
- Circuit breaker
- Starting batteries with connective wires
- Radiator and oil drain valve
- Forklift groove and shock absorber
- Color options: Weichai blue or beige canopy with black chassis
Optional Features
- Voltage options: 380V/415V or 440V/480V
- External fuel tank (1000L/1500L)
- Single voltage 220V/230V
- Automatic transfer switch
- Alternator and engine heater
- PMG/AREP options
Dimensions and Weights
| Genset Model | Prime Rating (kVA) | Length (mm) | Width (mm) | Height (mm) | Weight (kg) | Fuel Capacity (L) |
|---|---|---|---|---|---|---|
| JW-WP66B1 | 50 | 1930 | 860 | 1218 | 925 | - |
| JW-WP66F1 | 50 | 1930 | 860 | 1218 | 1030 | 105 |
| JW-WP66L1 | 50 | 2880 | 1050 | 1600 | 1420 | 180 |
*Weight includes coolant and oil
Product Images
Our OEM Partners
We collaborate with worldwide famous brands. Our customized solutions have earned us an esteemed reputation in the industry.
Frequently Asked Questions
Q: What is your MOQ of this item?
A: 1 Set
Q: What is the lead time?
A: 7 working days after receiving the 30% T/T deposit
Q: Can you make customer's own brand name?
A: We can be your OEM manufacturer with your brand authorization
Q: Where is your loading port?
A: Shanghai or others
Q: What are your payment terms?
A: 30% TT as deposit, 70% TT before shipment
Q: What is your production capacity?
A: 100 Sets per month
Q: What's the warranty period?
A: 12 months or 1000 working hours, whichever comes first
For more detailed specifications, please contact us directly.
