12M33 720A WEICHAI Diesel Generator 900kw 1000kva 1000kw 1250kva Weichai Genset
|
12M33 720A WEICHAI Diesel Generator 900kw 1000kva 1000kw 1250kva Weichai Genset
| Place of Origin | China |
| Brand Name | JIWEI |
| Certification | CE |
| Model Number | 12M33 |
Product Details
Rated Voltage:
400V , 230V
Rated Current:
720A-960A
Speed:
1500RPM, 1800RPM
Frequency:
50/60hz
Starting System:
24V DC Electric Start, 12V DC Electric Start
Type:
Container Type, Open Frame, Mobile Type
Cooling System Type:
Water Cooling System
Warranty:
Other
Rated Power:
900kw 1000kva 1000kw 1250kva 1100kw 1375kva 1200kw 1500kva
Engine:
12M33
Product Name:
900kw 1000kva 1000kw 1250kva 1100kw 1375kva 1200kw 1500kva Weichai Diesel Generator Set
Color:
Customizable
Highlight:
12M33 720A WEICHAI Diesel Generator
,WEICHAI Diesel Generator 900kw 1000kva
,1000kw 1250kva Weichai Genset
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiabce
Payment Terms
T/T
Product Description
900kw 1000kva WEICHAI Diesel Generator 1000kw 1250kva 12M33 720A Diesel Engine Generator
Product Description
900kw 1000kva 1000kw 1250kva 1100kw 1375kva 1200kw 1500kva Weichai Engine Diesel Generator Set
Overview
Performance Characteristics
- Strong power: Features advanced engine technology with large output torque, capable of driving 900kW load continuously for over 24 hours.
- Economy and energy saving: Low fuel consumption rate with efficient fuel injection technology and advanced turbocharging mechanism for high combustion efficiency.
- Stable and reliable: Weichai's mature technology ensures convenient installation, commissioning, and maintenance with nationwide service support.
- Environmental adaptability: EFI control system enables operation in various harsh environments, tested at altitudes up to 5,300 meters.
- Easy maintenance: Compact design with easily replaceable parts and automated voltage/frequency adjustment with remote control capability.
Technical Specifications
| Land Based Genset-JW-WP1240 | |
|---|---|
| Model | JW-WP1240 |
| Standby Rating kVA/kWe | 1375/1100 |
| Prime Rating kVA/kWe | 1250/1000 |
| Voltage V | 400/230 |
| Frequency Hz | 50 |
| Power Factor | 0.8(lagging) |
| No.of Phases | 3 |
| Fuel consumption@25%/50%/75%(Lh) | 76.4/128.0/188.5 |
| Fuel consumption@100%/110%(Lh) | 263.1/292.4 |
| Sound@1m(dB * (A)) | Opens101;Silence ≤95 |
| Ambient temp(℃) | -10~45 |
| Gen-set regulation class | ISO 8528-5G2 |
| Steady-state voltage deviation | ≤±2.5% |
| Translent voltage devlation(100%sudden power decrease/increase) | ≤+25%;≤-20% |
| Steady-state frequency band | ≤1.5% |
| Transient frequency deviation from rated frequency (100%sudden power decrease/increase) | ≤+12%;≤-10% |
Standard Features
◆ ECU
◆ DC24 Electric starter
◆ JW-WHC9320CAN
◆ Closed water-cooled
◆ IP23
◆ H type insulation
◆ Air filter
◆ Muffler
◆ Circuit Breaker
◆ Starting batteries with connective wires
◆ Radiator
◆ Oil Drain Valve
◆ Forklift Groove
◆ Shock Absorber
◆ Color: Weichai blue (B,F)/beige canopy and black chassis (L)/white(C)
◆ Packaging: Wound film packing
◆ PMG
Options
◇ Line Voltage 380V/415V
◇ Line Voltage 440V/480V
◇ Voltage 6.3kV/10.5kV/13.8kV
◇ Single Voltage 220V/230V
◇ Automatic Transfer Switch
◇ Automatic Parallel system
◇ Engine Heater(water)
◇ Engine Heater(air inlet)
◇ Alternator heater
◇ External fuel tank(1000L/1500L)
◇ AREP
For detailed parameters, please contact us. We have cooperation with worldwide famous brands.

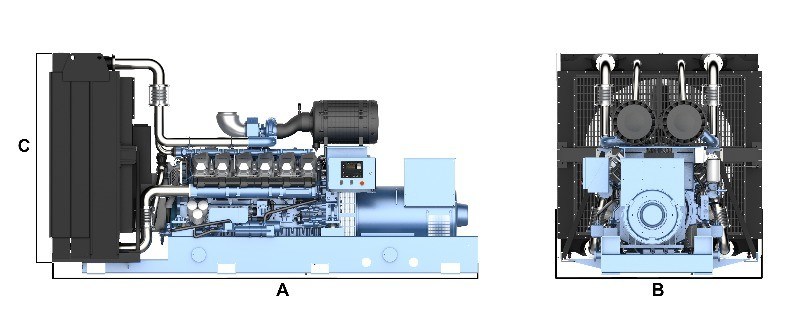

Product Images
Frequently Asked Questions
Q: What is your MOQ of this item?
A: 1 Sets.
Q: What is the lead time?
A: 7 working days after receiving the 30%T/T deposit.
Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q: Where is your Loading Port?
A: Shanghai or others.
Q: What are your payment terms?
A: 30% TT as deposit, 70% TT before Shipment.
Q: What is your company's available production capacity?
A: 100 Sets per month.
Q: What's the warranty time of diesel generators?
A: 12 months or 1000 working hours, whichever comes first.
Why Choose Our Generator Sets
- Environmental protection and fuel saving: Optimized performance with flexible control, reduced NOx emissions, high precision control, low vibration and noise, and low maintenance cost.
- Delivery Guarantee: Fast delivery (1-5 days after deposit) with 20 years of industry experience and stable supply chain.
- Quality assurance: Each unit undergoes comprehensive testing including 50%, 75%, 100%, and 110% load tests with all control and safety functions verified.
- Service guarantee: 2-year or 2000-hour warranty, 30-minute response time, global warranty coverage, and spare parts availability.
- Customized Services: Custom products and branding available with quality assurance and confidentiality agreements.
