Black Generator Battery Charger 12V 24V 3A-10A Output Generator Charger
| Place of Origin | China |
| Brand Name | Aisikai |
| Certification | CB |
| Model Number | AKSW |
Product Details
Warranty:
Other
Product Name:
Maximum 12V/24V Battery Charger
Usage:
Generator,Yamaha,Distant Control&Multiple Protection,water Pump Engine Etc,Diesel Engine
Stock:
In Stock
Color:
Black,white,Black Or Request
Package:
Carton
Oem Service:
Yes
Origin:
CHINA
Highlight:
Black Generator Battery Charger 12V
,Generator Battery Charger 24V
,10A Output Generator Charger
Payment & Shipping Terms
Minimum Order Quantity
10 pieces
Price
Negotiable
Delivery Time
10 work days
Payment Terms
T/T
Product Description

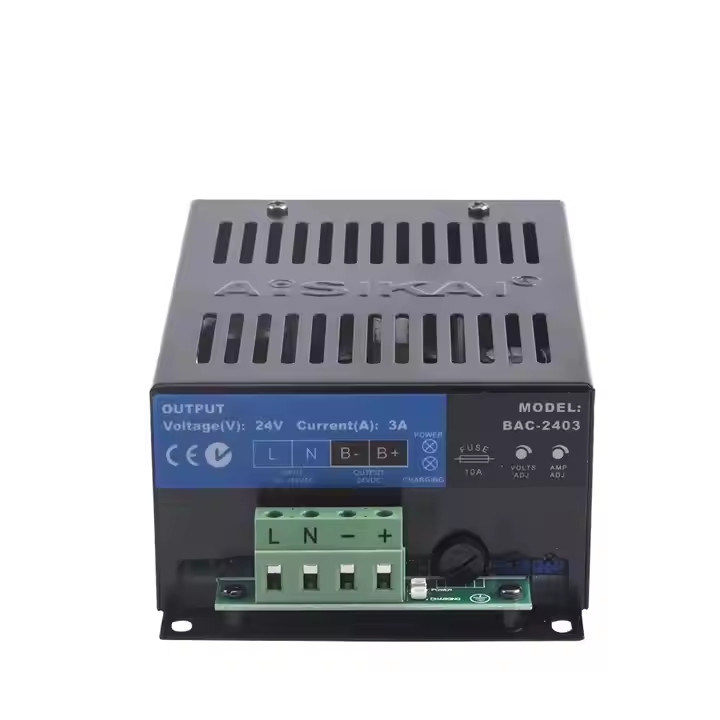

12V/24V Generator Battery Charger (3A-10A Output)
Compact, high-efficiency battery charger with adjustable output for generator applications. Features advanced safety protections and two-stage charging technology.
Key Features
- Efficient Switching Power Supply Compact design with wide input range delivers high efficiency in a lightweight package
- Two-Stage Charging Technology Automatic constant current/voltage charging prevents overcharging and extends battery life
- Advanced Safety Protections Built-in short circuit and reverse polarity protection for safe operation
- Adjustable Parameters On-site voltage and current adjustment via potentiometer for customized applications
- LED Status Indicators Clear visual monitoring of power and charging status
- Horizontal Mounting Design Simplified installation for various environments
Model Specifications
| Category | Entry | 12V | 24V | |
|---|---|---|---|---|
| Product model | BAC | BAC-1206 | BAC-2403/2405/2410 | |
| Input characteristic | Nominal AC input voltage | AC(100~240)V | ||
| Maximum AC input voltage | AC(90~305)V | |||
| AC frequency | 50Hz/60Hz | |||
| Maximum input current | 2.5A | 2.5A/2.5A/4A | ||
| Efficiency | >85% | |||
| Output characteristic | Charging current range | 4A~6A,±2% | 2A~3A/5A/10A,±2% | |
| Factory charging current | 6A | 3A/5A/10A | ||
| Maximum output power | 135W | 135W/135W/290W | ||
| Minimum output voltage | 7.5V | |||
| No load output voltage | 13.8V,±1% | 27.6V,±1% | ||
| No-load power consumption | <3W | |||
| Insulation property | Insulation resistance | Input/output, input/enclosure DC500V 1min condition, RL≥50MΩ | ||
| Isolation voltage | Input/output, input/housing AC1500V 50Hz 1min condition, L≤3.5mA | |||
| Working environment | Operating temperature | -30°C to 55°C | ||
| Storage temperature | -40°C to 85°C | |||
| Working humidity | 10%RH~95%RH | |||
| Outline structure | Weight | 0.65kg | 0.65/0.65/1.15kg | |
| Dimensions (L×W×H mm) | 143×96×55 (3A/5A/6A); 205×146×55 (10A) | |||
Frequently Asked Questions
Q: What is your MOQ of this item?
A: 10 Sets.
Q: What is the lead time?
A: 7 working days after receiving the 30% T/T deposit.
Q: Can you make customer's own brand name?
A: We can be your OEM manufacturer with your brand authorization.
Q: Where is your loading port?
A: Shanghai or others.
Q: What are your payment terms?
A: 30% TT as deposit, 70% TT before shipment.
Q: What is your production capacity?
A: 10,000 sets per month.
Q: What's the warranty period?
A: 12 months or 1000 working hours, whichever comes first.
