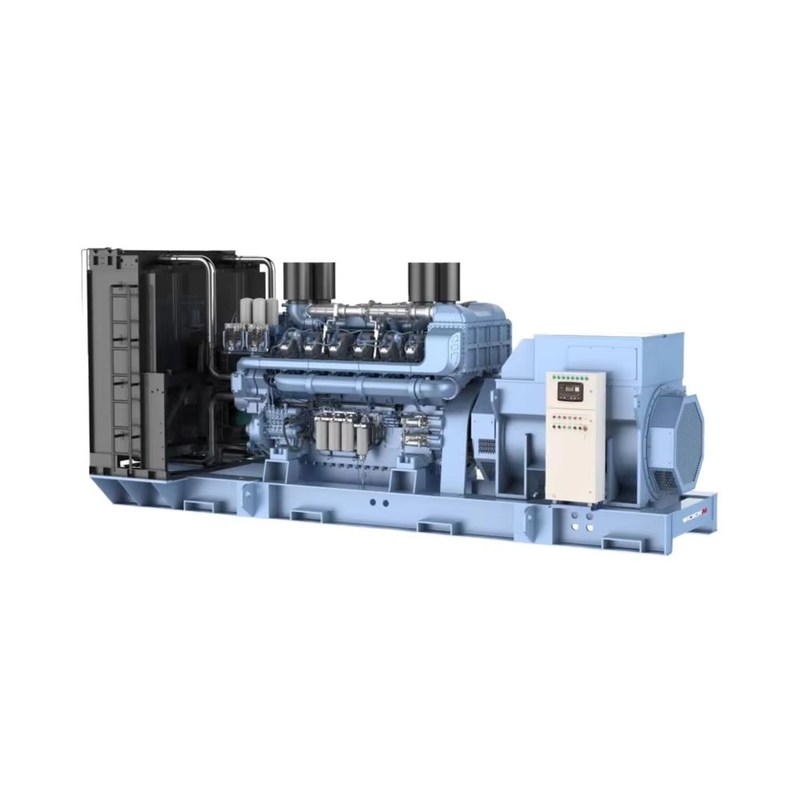

2400kw Weichai Marine Generator 2600Kw 3250Kva 3000kva Generator
|
2400kw Weichai Marine Generator 2600Kw 3250Kva 3000kva Generator
| Place of Origin | China |
| Brand Name | JIWEI |
| Certification | CE |
| Model Number | 16M55 |
Product Details
Rated Voltage:
400V , 230V
Rated Current:
1920A-2400A
Speed:
1500RPM, 1800RPM
Frequency:
50/60hz
Starting System:
24V DC Electric Start, 12V DC Electric Start
Type:
Container Type, Open Frame, Mobile Type
Cooling System Type:
Water Cooling System
Warranty:
Other
Rated Power:
2400 Kw / 3000 Kva / 2600 Kw / 3250 Kva
Engine:
16M55
Product Name:
2400 Kw / 3000 Kva / 2600 Kw / 3250 Kva Weichai Diesel Generator Set
Color:
Customizable
Highlight:
2400kw Weichai Marine Generator
,Weichai Marine Generator 2600Kw
,3250Kva 3000kva Generator
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiabce
Payment Terms
T/T
Product Description
Low Noise 2400kw Weichai Marine Generator 2600Kw 3250 Kva 3000 Kva Diesel Generator
2400kw 3000kva 2600kw 3250kva Weichai 3000kw 3750kva WEICHAI Diesel Generating Set
Application Fields
- Industrial field: Provides power support for factories, mines, and production equipment to ensure continuous operation.
- Commercial field: Serves as backup power for shopping malls, hotels, and other commercial establishments during power outages.
- Data center: Delivers stable power for servers and network equipment to ensure data security and business continuity.
- Marine field: Powers navigation, communication, and living facilities on fishing boats, transport ships, and government vessels.
Land Based Genset - JW-WP2900
Gen-set Specifications
| Model | JW-WP2900 |
|---|---|
| Standby Rating kVA/kWe | 3300/2640 |
| Prime Rating kVA/kWe | 3000/2400 |
| Voltage V | 400/230 |
| Frequency Hz | 50 |
| Power Factor | 0.8(lagging) |
| No.of Phases | 3 |
| Fuel consumption@25%/50%/75%(L/h) | 210/325/450 |
| Fuel consumption@100%/110%(L/h) | 590/655 |
| Sound@7m (dB * (A)) | Open≤110; Silence≤85 |
| Ambient temp(℃) | -10~40 |
| Gen-set regulation class | ISO8528-5 G3 |
| Steady-state voltage deviation | ≤±1% |
| Transient voltage deviation (100% sudden power decrease/increase) | ≤+20%; ≤-15% |
| Steady-state frequency band | ≤0.5% |
| Transient frequency deviation from rated frequency (100% sudden power decrease/increase) | +10%; -7% |
Standard Features
- Electrical Control Unit
- DC24 Electric starter
- JW-WHC9510N
- Closed water-cooled
- IP23
- H type insulation
- Air filter
- Muffler
- Circuit Breaker
- Starting batteries with connective wires
- Radiator
- Oil Drain Valve
- Shock Absorber
- Color: Weichai blue(B)/RAL9010(C)
- Packaging: packing case(B)
Options
- Voltage 380V/415V
- Voltage 440V/480V
- Voltage 6.3kV/10.5KV/13.8KV
- Automatic Transfer Switch
- Alternator heater
- Engine Heater(water)
- External fuel tank(1000L/1500L)
Typical Enclosed Genset Dimensions
| Genset Model | Prime Rating (kVA) | Length A(mm) | Width B(mm) | Height C(mm) | Wet Weight* (kg) | Standard Fuel tank Capacity (L) |
|---|---|---|---|---|---|---|
| JW-WP2900B73 | 3000 | 7090 | 3000 | 3580 | 25400 | / |
| JW-WP2900C73 | 3000 | 15700 | 3500 | 5500 | 54000 | 2000 |
*: Include coolant and oil.
Product Images
Our OEM Partners
We collaborate with worldwide famous brands. Our customized solutions consistently deliver satisfaction, earning us an esteemed reputation in the industry.
Frequently Asked Questions
Q: What is your MOQ of this item?
A: 1 Sets.
Q: What is the lead time?
A: 7 working days after receiving the 30% T/T deposit.
Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q: Where is your Loading Port?
A: Shanghai or others.
Q: What are your payment terms?
A: 30% TT as deposit, 70% TT before Shipment.
Q: What is your company's available production capacity?
A: 100 Sets per month.
Q: What's the warranty time of diesel generators?
A: 12 months or 1000 working hours, whichever comes first.
Why Choose Our Generator Sets
Environmental Protection and Fuel Saving:
Optimized performance with flexible control, reduced NOx emissions, high precision control, low vibration, low noise, and low maintenance costs.
Delivery Guarantee:
Fast delivery time (1-5 days after deposit for standard models). With 20 years of experience, we offer strong pre-sales and after-sales support, stable supplier resources, and reliable logistics.
Quality Assurance:
Each generator undergoes comprehensive testing including 50%, 75%, 100%, and 110% load tests, plus control, alarm, and safety shutdown function inspections.
Service Guarantee:
Free technical support and design services. Warranty: 2 years or 2000 hours. Service response within 30 minutes. Global warranty coverage with spare parts availability.
Customized Services:
We offer customized products and branding according to your requirements.
Confidentiality:
We can sign quality assurance and confidentiality agreements to ensure stable cooperation.
For detailed parameters and specifications, please contact us.
