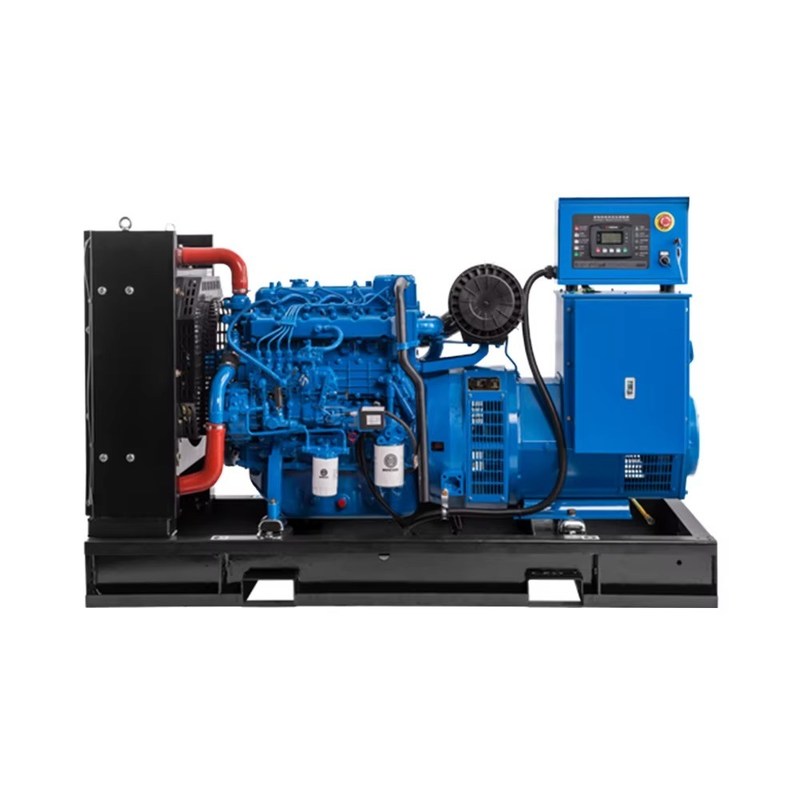

WEICHAI 22kva 18kw Diesel Generator 85dB Industrial Diesel Generators
|
WEICHAI 22kva 18kw Diesel Generator 85dB Industrial Diesel Generators
| Place of Origin | China |
| Brand Name | JIWEI |
| Certification | CE |
| Model Number | WP2.3 |
Product Details
Rated Voltage:
230V, 400V
Rated Current:
14A-30A
Speed:
1500RPM, 1800RPM
Frequency:
50/60hz
Starting System:
12V DC Electric Start
Type:
Container Type, Open Frame, Mobile Type
Cooling System Type:
Water Cooling System, Cooling Fins
Warranty:
Other
Rated Power:
18kw 22kva 26kw 32kva 30kw 38kva 36kw 45kva
Engine:
WP2.3
Product Name:
18kw 22kva 26kw 32kva 30kw 38kva 36kw 45kva Weichai Diesel Generator Set
Color:
Customizable
Highlight:
WEICHAI 22kva 18kw Diesel Generator
,18kw Diesel Generator 85dB
,85dB Industrial Diesel Generators
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiabce
Payment Terms
T/T
Product Description
18kw 22kva WEICHAI Diesel Generator 26kw 32kva 12V 85dB Industrial Diesel Generators
Product Overview
18kw 22kva 26kw 32kva 30kw 38kva 36kw 45kva Weichai Generator Diesel Generator Set
Application Fields
- Industrial: Backup power for factories to ensure continuous operation of production equipment during power outages (e.g., textile mills, machinery factories)
- Commercial: Power supply for shopping malls, hotels, and office buildings to maintain lighting, elevators, and air conditioning
- Medical: Critical backup power for hospital operating rooms, ICUs, and emergency equipment
- Communication: Backup power for communication base stations to prevent network interruptions
- Agriculture: Power source for rural irrigation systems and agricultural processing
Technical Specifications
| Land Based Genset - JW-WP25 | |
|---|---|
| Model | JW-WP25 |
| Standby Rating kVA/kWe | 22/18 |
| Prime Rating kVA/kWe | 20/16 |
| Voltage (V) | 400/230 |
| Frequency (Hz) | 50 |
| Power Factor | 0.8 (lagging) |
| No. of Phases | 3 |
| Sound Level @1m (dB(A)) | Open ≤105 dB(A); Silence ≤85 dB(A) |
| Ambient Temperature Range (℃) | -10 to 45 |
| Fuel Consumption @25%/50%/75% (L/h) | 1.9/3.1/4.4 |
| Fuel Consumption @100%/110% (L/h) | 6/7.1 |
Standard Features
- Electronic governor
- DC12 Electric starter
- JW-WHC6120NC
- Closed water-cooled system
- IP23 protection
- H type insulation
- Air filter and muffler
- Circuit breaker
- Starting batteries with connective wires
- Radiator and oil drain valve
- Forklift groove and shock absorber
- Color options: Weichai blue (B,F) or beige canopy with black chassis (L)
Options
- Voltage options: 380V/415V or 440V/480V
- External fuel tank (1000L/1500L)
- Auxiliary winding
- Automatic Transfer Switch
- Alternator and engine heater (water)
Dimensions & Weight
| Genset Model | Prime Rating (kVA) | Length (mm) | Width (mm) | Height (mm) | Wet Weight (kg) | Fuel Tank Capacity (L) |
|---|---|---|---|---|---|---|
| JW-WP25/B1 | 20 | 1500 | 792 | 1160 | 600 | 1 |
| JW-WP25/F1 | 20 | 1500 | 792 | 1160 | 600 | 55 |
| JW-WP25/L1 | 20 | 1900 | 720 | 1100 | 900 | 44 |
Frequently Asked Questions
Q: What is your MOQ of this item?
A: 1 Sets.
Q: What is the lead time?
A: 7 working days after receiving the 30% T/T deposit.
Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q: Where is your Loading Port?
A: Shanghai or others.
Q: What are your payment terms?
A: 30% TT as deposit, 70% TT before Shipment.
Q: What is your company's available production capacity?
A: 100 Sets per month.
Q: What's the warranty time of diesel generators?
A: 12 months or 1000 working hours, whichever comes first.
Why Choose Our Generator Sets
- Environmental Protection & Fuel Saving: Optimized performance with reduced NOx emissions, high precision control, low vibration, noise, and maintenance costs
- Delivery Guarantee: Fast delivery (1-5 days after deposit), 20 years of industry experience with strong supply chain and logistics capabilities
- Quality Assurance: Comprehensive testing including 50%, 75%, 100%, and 110% load tests with all control, alarm, and safety shutdown function inspections
- Service Guarantee: 2-year or 2000-hour warranty, 30-minute response time, global warranty coverage, and spare parts availability
- Customized Services: OEM products and logo customization available
- Confidentiality: Quality assurance and confidentiality agreements available
For more specifications or custom requirements, please contact our sales team.
