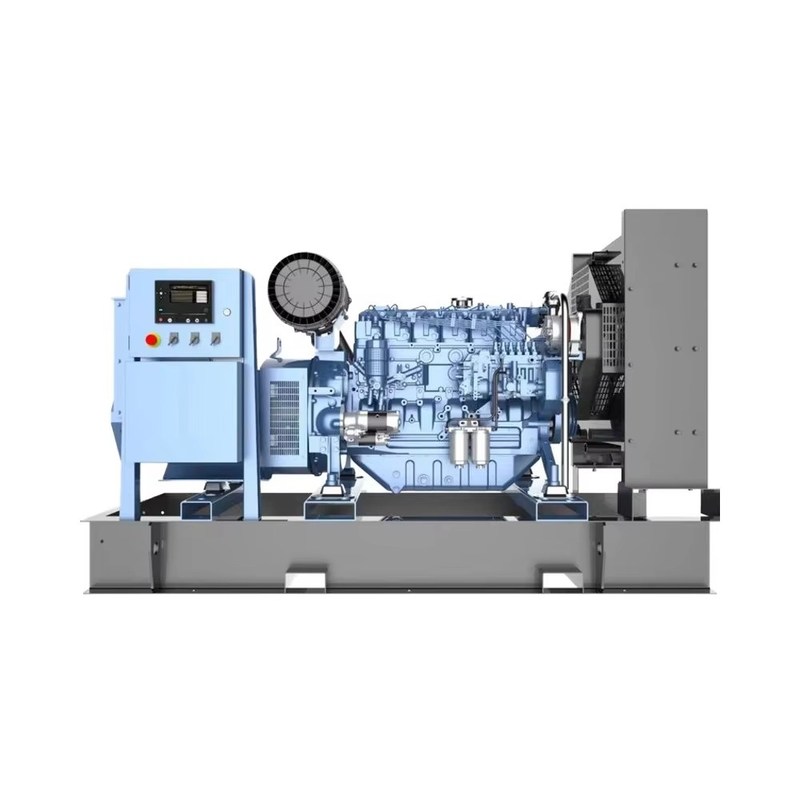

300KW 375KVA WEICHAI Diesel Generator 400V 230V Silent Generator Set
|
300KW 375KVA WEICHAI Diesel Generator 400V 230V Silent Generator Set
| Place of Origin | China |
| Brand Name | JIWEI |
| Certification | CE |
| Model Number | WP12D |
Product Details
Rated Voltage:
400V , 230V
Rated Current:
240A
Speed:
1500RPM, 1800RPM
Frequency:
50/60hz
Starting System:
24V DC Electric Start
Type:
Container Type, Open Frame, Mobile Type
Cooling System Type:
Water Cooling System
Warranty:
Other
Rated Power:
300kw 375kva
Engine:
WP12D
Product Name:
300kw 375kva Weichai Diesel Generator Set
Color:
Customizable
Highlight:
300KW 375KVA WEICHAI Diesel Generator
,375KVA WEICHAI Diesel Generator 400V
,230V Silent Generator Set
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Payment Terms
T/T
Product Description
300kw 375kva WEICHAI Diesel Generator 400V 230V Silent Generator Set
Product Overview
Good Economy And Cost-Effective 300kw 375kva Weichai Generator Diesel Generator Set
Product Characteristics
- Strong power: Weichai brand engines (WP10D320E200, WP12D353E200 models) with large torque and power reserve for quick response to load changes.
- High efficiency and energy saving: Advanced fuel injection system and turbocharging technology ensure complete fuel combustion and improved energy efficiency.
- Stable and reliable: Electronic speed regulation system automatically adjusts throttle to maintain stable voltage and frequency. Robust mechanical structure adapts to harsh environments.
- Low noise and environmental protection: Noise reduction technology and efficient exhaust muffler minimize operating noise while meeting international emission standards.
- Easy maintenance: Compact design simplifies inspection and repair. Nationwide after-sales service network provides timely parts and technical support.
Application Fields
- Industrial: Factories, mines, metallurgy, and chemical plants as backup or primary power source.
- Commercial: Hotels, shopping malls, offices, and entertainment venues for emergency power during outages.
- Medical: Critical hospital equipment including operating rooms and ICUs requiring reliable power.
- Transportation: Airports, railways, and subways as backup power for transportation facilities.
Generator Set Specifications
| Model | JW-WPG412.5*8 |
|---|---|
| Rating kVA/kWe | 375/300 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Power Factor | 0.8 (lagging) |
| No. of Phases | 3 |
| Fuel consumption @25%/50%/75% (L/h) | 20.2/36.9/55.8 |
| Fuel consumption @100%/110% (L/h) | 78.6/86.4 |
| Sound @1m (dB(A)) | Open≤105 |
| Ambient temp (°C) | -10~45 |
| Gen-set regulation class | ISO8528-5 G2 |
| Steady-state voltage deviation | ≤±2.5% |
| Transient voltage deviation (100% sudden power decrease/increase) | ≤+25%;≤-20% |
| Steady-state frequency band | ≤1.5% |
| Transient frequency deviation from rated frequency (100% sudden power decrease/increase) | ≤+12%;≤-10% |
Typical Genset Dimensions
| Genset Model | Prime Rating (kVA) | Length (mm) | Width (mm) | Height (mm) | Wet Weight* (kg) | Standard Fuel tank Capacity (L) |
|---|---|---|---|---|---|---|
| JW-WP353/B8 | 375 | 3170 | 1200 | 1689 | 2960 | -- |
| JW-WP353/F8 | 375 | 3170 | 1200 | 1829 | 3095 | 420 |
*: Include coolant and oil.
Product Images
Frequently Asked Questions
Q: What is your MOQ of this item?
A: 1 Sets.
Q: What is the lead time?
A: 7 working days after receiving the 30% T/T deposit.
Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q: Where is your Loading Port?
A: Shanghai or others.
Q: What are your payment terms?
A: 30% TT as deposit, 70% TT before Shipment.
Q: What is your company's available production capacity?
A: 100 Sets per month.
Q: What's the warranty time of diesel generators?
A: 12 months or 1000 working hours, whichever comes first.
Why Choose Our Generator Sets
- Environmental protection and fuel saving: Optimized performance with flexible control, reduced NOx emissions, high precision control, low vibration, noise, and maintenance costs.
- Delivery guarantee: Fast 1-5 day delivery (except special models), 20 years of industry experience with strong supply chain and logistics resources.
- Strict quality control: Comprehensive testing including 50%, 75%, 100%, and 110% load tests with all control, alarm, and safety shutdown function inspections.
- Service guarantee: 2-year/2000-hour warranty, 30-minute response time, global spare parts availability, and free technical support.
- Customized services: Custom products and branding options available.
- Confidentiality: Quality assurance and confidentiality agreements available for stable cooperation.
For detailed parameters or custom requirements, please contact us.
