| Place of Origin: | China |
|---|---|
| Brand Name: | Ai Power |
| Certification: | CE, ISO |
| Model Number: | AP33 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Foam & plastic |
| Delivery Time: | 20-25 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 units per month |
| Frequency: | 50 Hz/ 60 Hz | Rated Voltage: | 400/230V, 380V/220V, 415V/240V |
|---|---|---|---|
| Warranty: | 1 Year Or 1000 Hours | Options: | Silent Canopy/trailer/ATS/ |
| Rated Current: | 43A | Output Type: | AC Single/Three Phase |
| Control Panel: | Smartgen, Deepsea, ComAp | Protection Class: | IP23 |
| High Light: | Perkins Silent Diesel Generator,24kw Perkins Diesel Generator,EPA Silent Diesel Generator |
||
30kVA/24kw Perkins Engine Super Silent Diesel Generator with Sitamford/Leroy Somer CE EPA certificate
AI power UK series generator set adopts UK engine as the power source. It’s one of the world’s leading diesel engine manufacturers since 1932, produced nearly 400,000 units for one year and quickly occupied the world market for the full specification, good structure, reliable performance, easy maintenance, low exhaust and long period maintenance. Perkins service network is in more than 180 countries and regions.
Engine Specifications:
| DIESEL GENERATOR SET | |||||
| Gensets Model | AP33 | ||||
| Prime Power | 24KW/30KVA | ||||
| Standby Power | 26.4KW/33KVA | ||||
| Rated Voltage (V) | 400 | ||||
| Rated Current (A) | 34.6 | ||||
| Rated Frequency (Hz) | 50 | ||||
| Rated Speed (RPM) | 1500 | ||||
| Power Factor (COS¢) | 0.8(lagging) | ||||
| ENGINE DATA | |||||
| Engine brand | Perkins | ||||
| Engine model | 403A-15G1 | ||||
| Number of Cylinders | 3 | ||||
| Cylinder arrangement | L type | ||||
| Cycle | Four Stroke | ||||
| Aspiration | Naturally aspirated | ||||
| Fuel System | indirect Injection | ||||
| Bore×Stroke (mm×mm) | 105x127 | ||||
| Displacement (Liter) | 3.3 | ||||
| Cooling System | Liquid | ||||
| Speed Governor | Electrical | ||||
| Compression Ratio | 19.25: 1 | ||||
| Starting Method | DC 24V electrical starting | ||||
| Total Oil Capacity (Liter) | 8.2 | ||||
| Fuel Consumption (100% load) | 100% | 5.4 | |||
| 75% | 4.86 | ||||
| 50% | 4.32 | ||||
| Total Coolant Capacity (Liter)4.4 | |||||
| ALTERNATOR DATA | |||||
| Alternator brand | Stamford | ||||
| Alternator model | PI144G | ||||
| Number of Phase | 3 | ||||
| Connecting Type | 3 Phases and 4 Wires | ||||
| Number of Bearing | Single | ||||
| Protection Grade | IP23 | ||||
| Altitude | ≤1000m | ||||
| Exciter Type | Brushless, selfexciting, AVR &100% copper winding wire | ||||
| Insulation Class | H | ||||
| Telephone Influence Factor (TIF) | ≤50 | ||||
| Telephone Harmonic Factor(THF) | ≤2% | ||||
| Voltage Regulation, Steady State | 1.00% | ||||
| Transient State Voltage | ≤-15%~+20% | ||||
Product Details

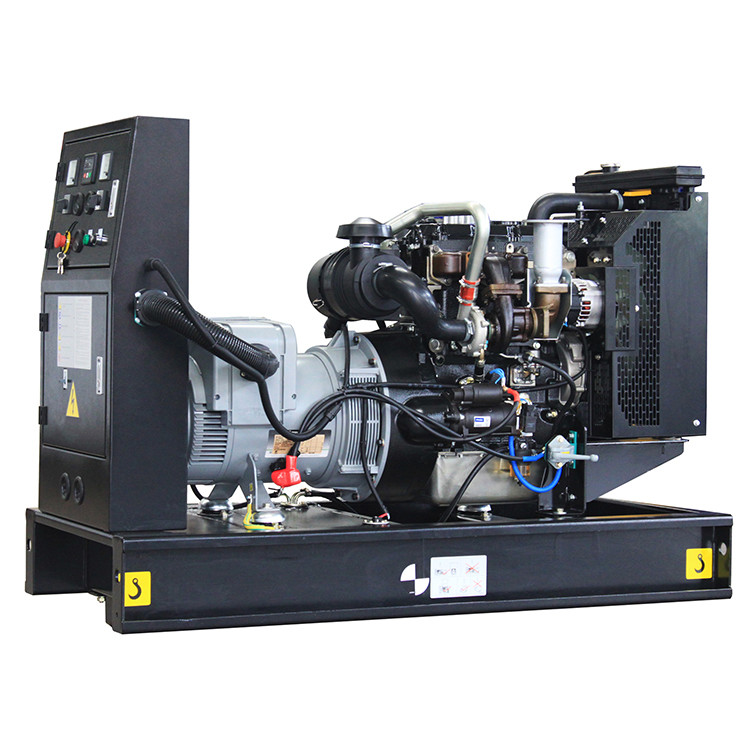

Open Type:
● Famous brand engine couple with high quality alternator
● Large size cooling radiator
● Heavy duty steel base frame
● Strong anti-vibration mat
● Standard free maintenance battery
● AC alternator for battery charger
● Heavy-duty air filter, oil filter, water filter
● Famous brand controller and breaker
● Optional fuel tank, silent canopy, ATS, synchronization panels.

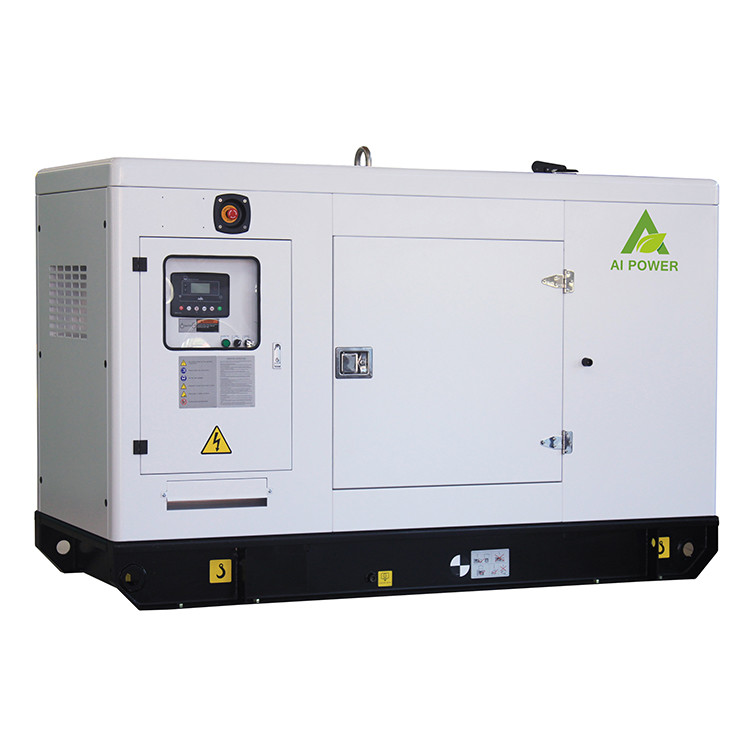

Silent Performance Features:
● More than 2mm thick steel to make the canopy.
● High quality paint materials and strict powder paint processing.
● large-scale impedance combined type silencer effectively reducing noise of the generator.
● Stainless steel door locks and hinges and 180° revolvable and disassemble door for easy maintenance.
● High quality soundproof and insulation materials could efficiently reduce noise.
● Transparent viewing window make the control panel clear at a glance.
● Lifting ear is mounted in the base frame for easy pull.
● Elegant appearance and reliable quality.
● From 10kva to 700kva we use normal silent canopy, more than 700kva we are using containerized canopy.
● ISO standard 20’, 40’ and 40HQ sea container canopy for options.
● Standard sea container canopy is easier for shipping.
A: It’s 1 year or 1000 running hours whichever comes first. But based on some special project, we can extend our warranty period.
A. Yes, we can accept OEM.
A: We can accept T/T 30% in advance and the balance 70% shall be paid before shipment or LC at sight.
