| Place of Origin: | China |
|---|---|
| Brand Name: | Ai Power |
| Certification: | CE, ISO9001 |
| Model Number: | A160 |
| Minimum Order Quantity: | 1 Unit |
| Price: | USD 12000 to 13000 Per Unit Negotiable |
| Packaging Details: | plywood or plastic film |
| Delivery Time: | 30 Days |
| Payment Terms: | Western Union, L/C, T/T, MoneyGram |
| Supply Ability: | 200 Units Per Month |
| Prime Power: | 160kw/200kva | Cummins Engine Model: | 6CTA8.3-G2 |
|---|---|---|---|
| Leroy Somer Alternator Model: | LSA44.3VL13 | Output Type: | AC Three Phase |
| Protection: | IP23 | Rated Current: | 400A |
| Cooled Type: | Water Cooled | Excitation System: | Shunt |
| Governor Type: | Electric Governor | ATS: | Depand On Customer Need |
| High Light: | 6CTA8.3-G2 Cummins Diesel Generator,Cummins Diesel Generator 200kva |
||

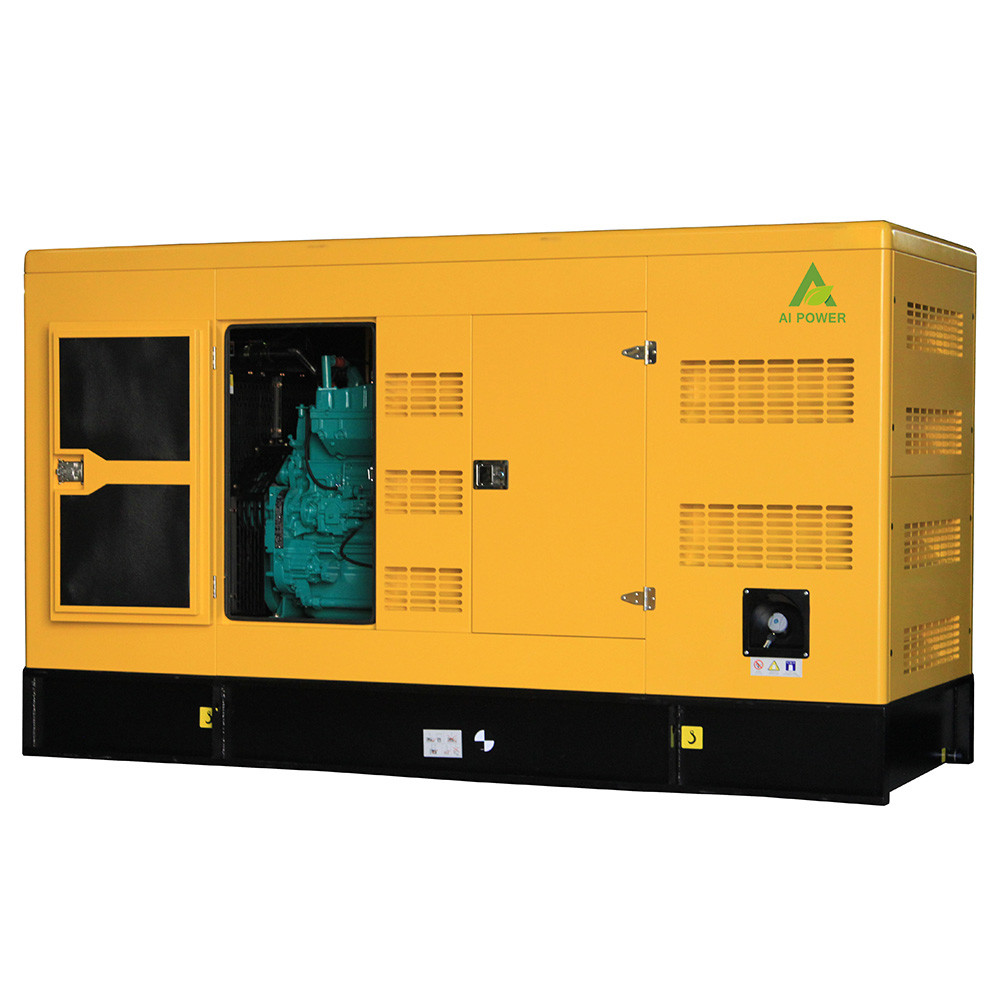

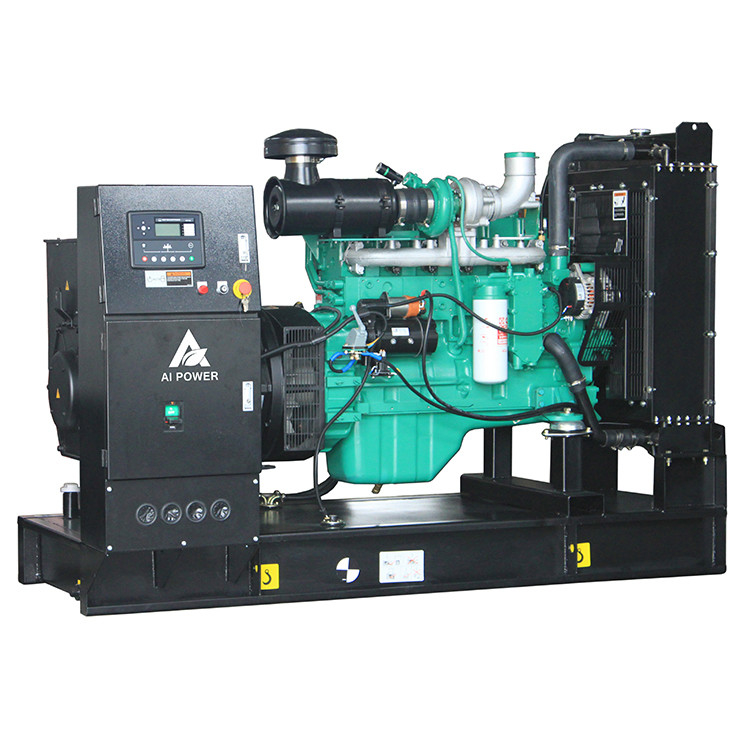

Prime Power 160kw 200kva 6CTA8.3-G2 Cummins Diesel Generator Set DCEC
|
Frequency
|
50HZ
|
|
Voltage
|
220/380V, 230/400V, 240/415V
|
|
Power range
|
65KVA Prime
|
|
Engine
|
Cummins 6CTA 8.3-G2 Series
|
|
Alternator
|
Leroy somer, Stamford, Meccalte etc.
|
|
Controller
|
DSE6120, DSE7320, AMF20, AMF25
|
|
Genset type
|
open generator, silent genset, container power generator, mobile diesel generator
|
|
Option
|
ATS, synchronization system
|
Diesel Engine specification
| Engine model 6CTA 8.3-G2 | |||
|
Engine speed (rpm)
|
1500
|
||
|
Engine output prime(kWm)
|
163
|
||
|
Engine output standby(kWm)
|
180
|
||
|
4Engine Type
|
6L Cylinder
|
||
|
Induction system
|
Turbocharged and aftercooled
|
||
|
Bore x Stroke (mm)
|
102 * 120
|
||
|
Type of combustion chamber
|
38
|
||
|
Number of valve per cylinder.
|
114:135
|
||
|
Starting mode
|
Electronic
|
||
Brushless AC Alternator
|
Alternator manufacturer
|
Leroysomer Electro-technique (Fuzhou) Company Ltd.
|
|
Alternator brand
|
Leroysomer
|
|
Alternator model
|
LSA44.3VL13
|
|
Control system
|
AREP
|
|
A.V.R.
|
Included
|
|
Voltage regulation
|
±1.0%
|
|
Insulation system
|
Class H
|
|
Protection
|
IP23
|
|
Rated power factor
|
0.8
|
|
Winding pitch
|
Two thirds
|
|
Winding leads
|
6
|
|
Frequency (Hz)
|
50
|
|
Voltage (V)
|
400
|
|
Phase
|
3
|
|
THF
|
<2%
|
|
TIF
|
<50
|
|
Max. overspeed (Rev/Min)
|
2250
|
|
Bearing
|
Single
|
