| Place of Origin: | China |
|---|---|
| Brand Name: | Ai Power |
| Certification: | CE, ISO |
| Model Number: | AC300 |
| Minimum Order Quantity: | 1 unit |
| Packaging Details: | Foam & plastic |
| Delivery Time: | 25 to 35 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 units per month |
| Engine: | Cummins | Alternator: | Stamford/Leroy-somer |
|---|---|---|---|
| Controller: | Smartgen / Deepsea | Rated Current: | 600A |
| Output Type: | AC Single/Three Phase | Options: | Silent Canopy/ATS |
| Protection Class: | IP23 | Warranty: | 1 Year Or 1000 Running Hours |
| High Light: | Denyo cummins power generator,300KW cummins power generator,silent dg set for home 6ZTAA13-G3 |
||

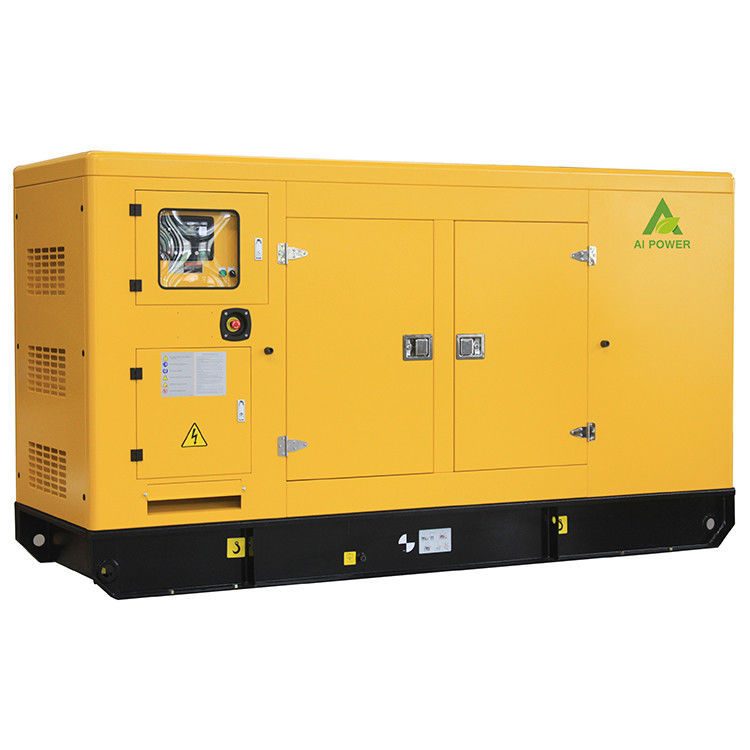

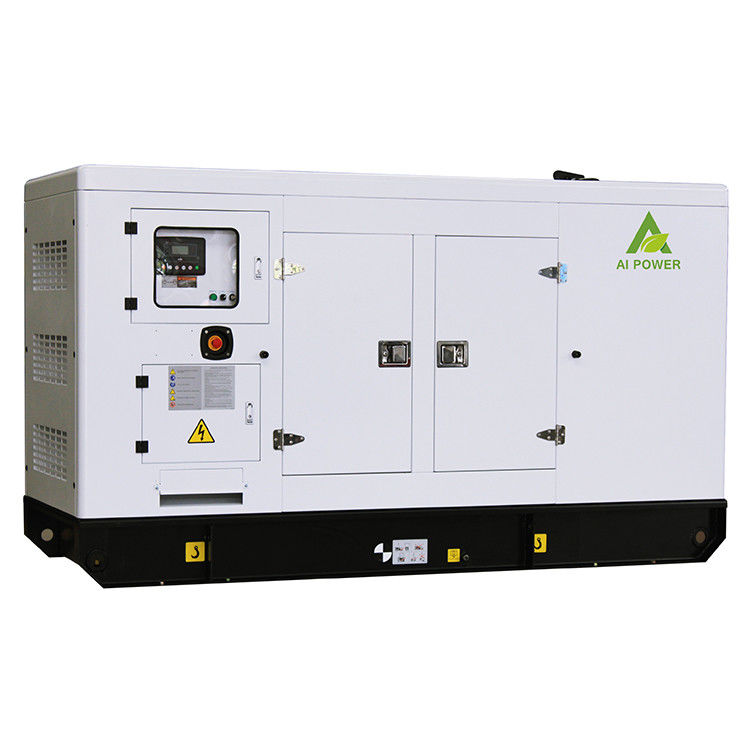

Cummins Factory Use Denyo Silent 300KW diesel generator set by engine 6ZTAA13-G3
Around the world, Cummins engines are built to the highest quality standards to provide durability and dependability. No wonder we’re the world-leading independent engine manufacturer and power to many industries, including marine, construction, agriculture, rail, mining, forestry, GSE, vocational, defence or oil & gas.
Engine Specifications:
|
Cummins engine Parameters
|
|
|
Engine Model
|
6ZTAA13-G3
|
|
Number of Cylinders
|
6 cylinders, Vertical in line
|
|
Cycle
|
4 stroke
|
|
Aspiration
|
Turbocharged and after water cooled
|
|
Bore×Stroke
|
130mm x163mm
|
|
Displacement
|
13.0L
|
|
Compression ratio
|
17.1:1
|
|
Prime Power/Speed
|
310 kw/ 1500rpm
|
|
Standby Power/Speed
|
341 kw/ 1500rpm
|
|
Speed Governor
|
electrical
|
|
Fuel Consumption at 100% Load
|
216g/kw.h
|
|
Alternator Parameters
|
|
|
Alternator brand
|
Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…
|
|
Prime power
|
310kw
|
|
Frequency/speed
|
50Hz/1500rpm
|
|
Exciter type
|
Single bearing, Brushless, Self-excited
|
|
Power factor
|
0.8
|
|
Voltage adjust range
|
≥5%
|
|
Voltage regulation NL-FL
|
≤±1%
|
|
Insulation Grade
|
H
|
|
Protection Grade
|
IP23
|
|
Controller Panel
|
|
|
Brand
|
Deepsea/ComAp/SmartGen
|
|
Function |
The control module gives digital readouts of:
Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run. The control module has indicators for failure information: Overspeed/underspeed; Emergency stop; Low oil pressure; Battery charger failure High water temperature; Failure to start Automatic shutdown occurs under:
Low engine oil pressure; High engine water temperature; Overspeed/underspeed; Failure to start after three attempts. |
Product Details
Ai Power products adopts internationally and domestically reputed high-quality engines and alternators including DCEC, CCEC engine, UK famous engine, MTU from Germany, Doosan from South Korea, Stamford, LeroySomer, and Marathon for our industrial diesel generator sets, marine generator, movable generator, lighting towers, generator spare parts and switchgear, power transformers. Those products are featured by personalization, intelligence, environmental protection and high quality. They are widely used in buildings, hospitals, banks, mine, ports, construction, data center, power station and high voltage projects.
Meet the strong, silent type. Cummins Super Quiet generators offer impressive features, plus a totally enclosed body for noticeably quieter performance. Combining quality, portability, reliability, and convenience, a Super Quiet generator is the smart choice whenever quieter is better.Our company only produce water cooled generator, from 5kva to 15kva, we have high quality Japan Kubota, Yanmar, UK Perkins, Cummins and some Chinese local brand etc diesel generator for your choice, The alternator we adopt Leroysomer, Stamford, Marathon etc, all of our products have CE and ISO9001 certificate.
1.What's our power capacity range of generator?
Answer: We can offer the range from 10kva~3000kva genset, diesel generator, gas generator, marine generator.
2. Besides power generator, what's your other product?
Answer: We also provide lighting tower, air compressor, ATS, synchronization system, switchgear, transformer, engine spareparts.
3. What's kind of generator type you produce?
Answer: open generators, silent power generators, super silent genset, trailer genset, movable electric generator, reefer generator.
4.What's your warranty?
Answer: One year or 1000 hours, which one comes first.
5.Can you use our logo?
Answer: Yes, we can use customer's logo instead of ours.
6. Can you accept small order?
Answer: Yes, we can accept trial order.
7. What’s your delivery time?
Answer: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
