| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Perkins |
| Certification: | CE, ISO9001, EPA |
| Model Number: | AP12 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | film and foam package |
| Delivery Time: | 20-30 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 200 sets per month |
| Rated Voltage: | 230V/400V,277V/480V,127V/220V,220V/440V, | Frequency: | 50HZ/60HZ |
|---|---|---|---|
| Speed: | 1500rpm/1800rpm | Rated Current: | 20A |
| Output Type: | AC Single Phase, AC Three Phase | Rated Power: | 8kw/10kva |
| Controller: | Deepsea, Smartgen | Engine Brand: | Perkins |
| Alternator: | Leroysomer, Stamford, Meccalte, Marathon Etc | Type: | Open And Silent |
| Fuel Tank: | 8 Hours Base Fuel Tank | Protection Class: | IP22, IP23 |
| Highlight: | 230V Volvo Diesel Generator Set,10 kva Volvo Diesel Generator Set,permanent backup generator water cooled 403A-15G1 |
||
USA EPA approved 8kw 10kva Perkins water cooled industrial diesel generator set
Ai power UK Perkins industrial generator set adopts Perkins engine as the power source. It’s one of the world’s leading diesel engine manufacturers since 1932, produced nearly 400,000 engines for one year and quickly occupied the world market for the full specification, good structure, reliable performance, easy maintenance, low exhaust and long period maintenance. Perkins service network is in more than 180 countries and regions.
Perkins Diesel Engine Specification
| Engine manufacture | Perkins Engines Company Limited | |||||||||||
| Engine brand | Perkins | |||||||||||
| Engine model | 403A-15G1 | |||||||||||
| Engine speed (rpm) | 1500 | |||||||||||
| Prime power | Standby power | |||||||||||
| Gross engine power (kWb) | 12.2 | 13.5 | ||||||||||
| Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW) | 10.4 | 11.6 | ||||||||||
| Cylinders | 3-cylinder, vertical in line | |||||||||||
| Cycle | 4 stroke | |||||||||||
| Induction system | Naturally Aspirated | |||||||||||
| Compression ratio | 22.5:1 | |||||||||||
| Bore * Stroke (mm) | 84*90 | |||||||||||
| Cubic capacity (Litre) | 1.496 | |||||||||||
Stamford Alternator Specification
| Alternator manufacturer | Cummins Generator Technologies(China) Co. Ltd | |||||||||||
| Alternator brand | Stamford | |||||||||||
| Alternator model | PI044E | |||||||||||
| Control system | SELF EXCITED | |||||||||||
| A.V.R. | Included | |||||||||||
| Voltage regulation | ±1.0% | |||||||||||
| Insulation system | Class H | |||||||||||
| Protection | IP23 | |||||||||||
| Rated power factor | 0.8 | |||||||||||
| Winding pitch | Two thirds | |||||||||||
| Winding leads | 12 | |||||||||||
| Frequency (Hz) | 50 | |||||||||||
| Voltage (V) | 400 | |||||||||||
| Phase | 3 | |||||||||||
| Output ratings (kVA/kW) | ||||||||||||
| ----------------Cont.H-40°C | 10/8 | |||||||||||
| ----------------Standby-27°C | 11/8.8 | |||||||||||
| THF | <2% | |||||||||||
| TIF | <50 | |||||||||||
| Max. overspeed (Rev/Min) | 2250 | |||||||||||
| Bearing | Single | |||||||||||

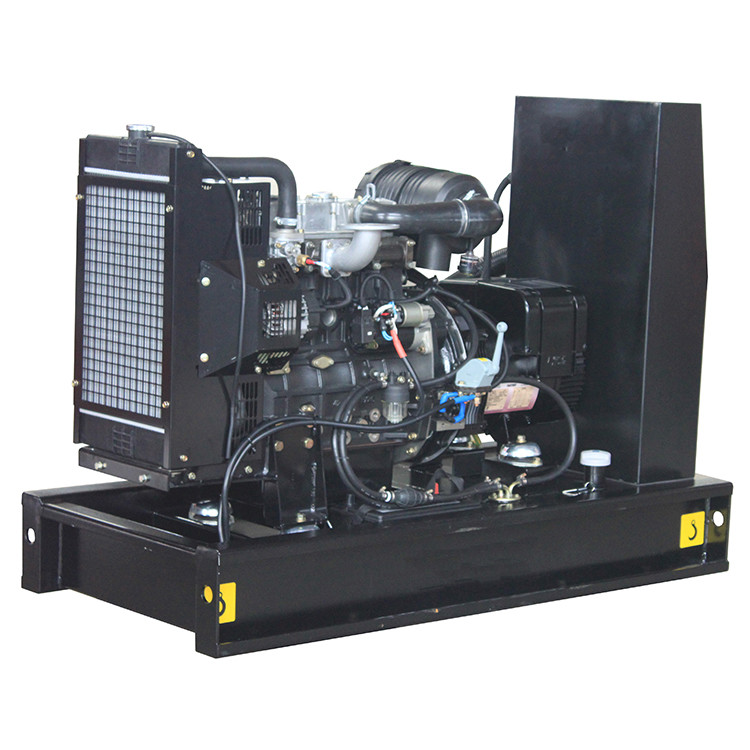

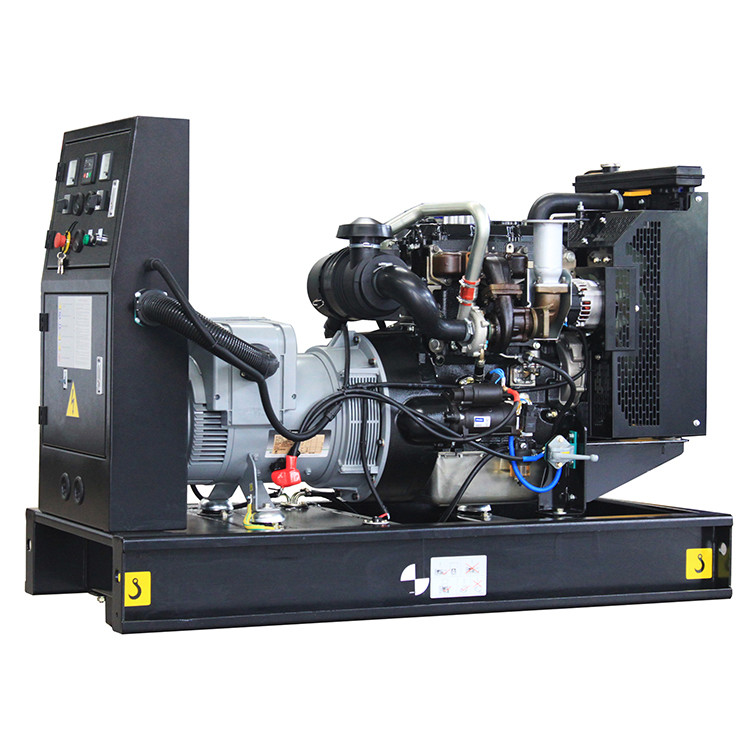

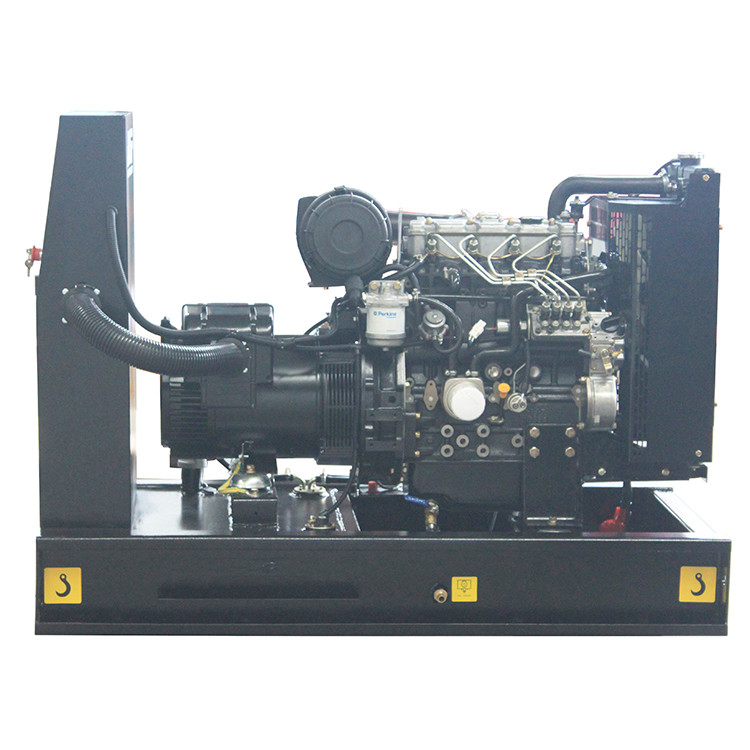

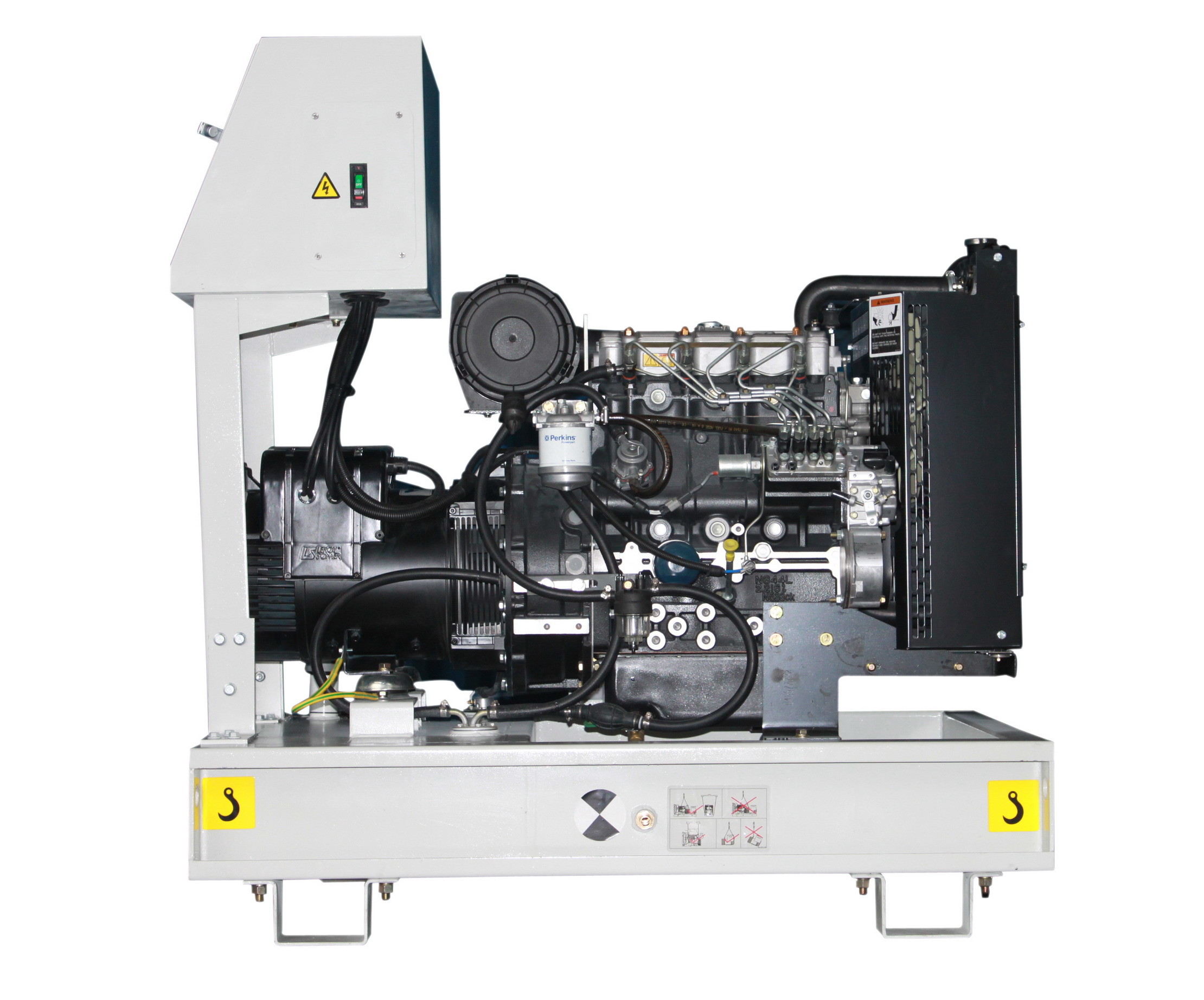

Perkins Open Diesel Generator Sample Photos

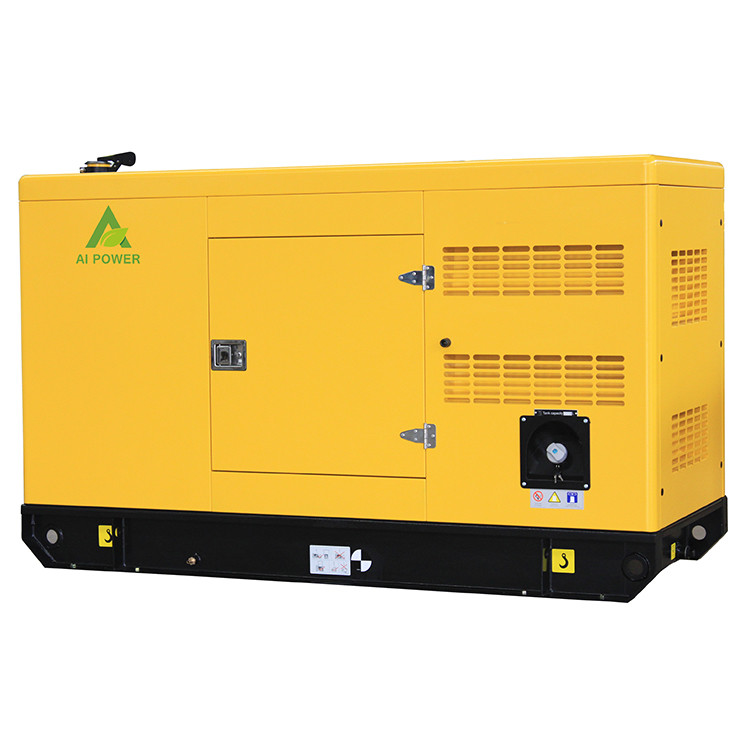

Perkins Silent Diesel Generator Sample Photos
● More than 2mm thick steel to make the canopy.
● High quality paint materials and strict powder paint processing.
● large-scale impedance combined type silencer effectively reducing noise of the generator.
● Stainless steel door locks and hinges and 180° revolvable and disassemble door for easy maintenance.
● High quality soundproof and insulation materials could efficiently reduce noise.
● Transparent viewing window make the control panel clear at a glance.
● Lifting ear is mounted in the base frame for easy pull.
● Elegant appearance and reliable quality.
● From 10kva to 700kva we use normal silent canopy, more than 700kva we are using containerized canopy.
● ISO standard 20’, 40’ and 40HQ sea container canopy for options.
● Standard sea container canopy is easier for shipping.
Control Panel Specification
The DEEPSEA DSE 6120 is an Auto Mains (Utility) Failure Control Module developed to provide a wide range of operating and monitoring features for single diesel and gas gen-sets. DSE7320, ComAp AMF25 etc. for option.
Perkins Generator details
AI POWER FACTORY TOUR
AI POWER is the professional manufacturer of power generator, light tower and reefer container generators in China. We provides a complete line of generators for commercial,industrial and residential application.We specialize in providing a wide range of well known and trusted brands of diesel generators, supplying generators from 5kw to 3000kw at competitive prices. Besides generators, we also product the refere product incldue lighting towers and air compressor. At the same time, we also provide the reference electrical products, include ATS, Synchronization system.
PACKING AND DELIVERY
